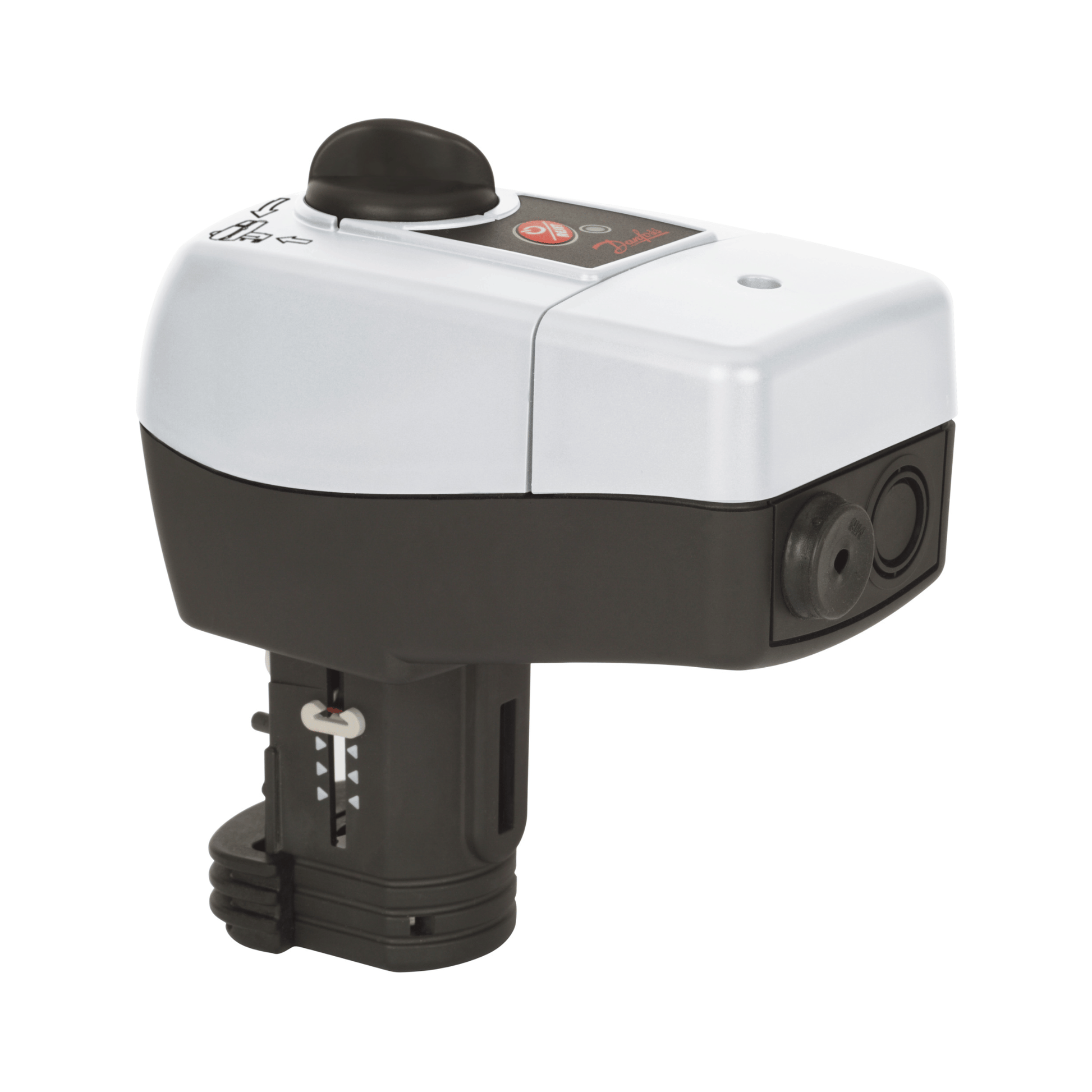

Danfoss AMV 435 Gear Actuator - 24V - 082H0162
Danfoss AMV 435 Gear Actuator - 24V - 082H0162
- Lead Time: Direct from our Supplier, Usually 5-7 Working Days*
Regular price
£365.93
Regular price
Sale price
£365.93
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
AMV 435 actuator is used with two and three-way valves type VRB, VRG, VF and VL up to DN 80 diameter and for AHQM DN 40-100. It is also used with pressure independent balancing and control valve type AB-QM from DN 40 to DN 100.
The advanced design incorporates load related ‘switch-off’ to ensure that actuators and valves are not exposed to overload.
Combinations with other valves could be seen under Accessories
Main data:
- Nominal voltage:
- 24 VAC/DC, 50 Hz/60 Hz
- 230 VAC, 50 Hz/60 Hz
- Control input signal: 3 point
- Force: 400 N
- Stroke: 20 mm
- Speed (selectable):
- 7.5 s/mm
- 15 s/mm
- Max. medium temperature: 130 °C
- LED signalling
- End-position signals
- Manual operation
Features & benefits
- No tool requirement for installation
- LED visual operation feedback
- Protection from excessive stem travel
- End position indication
- Selectable stem travel speed
