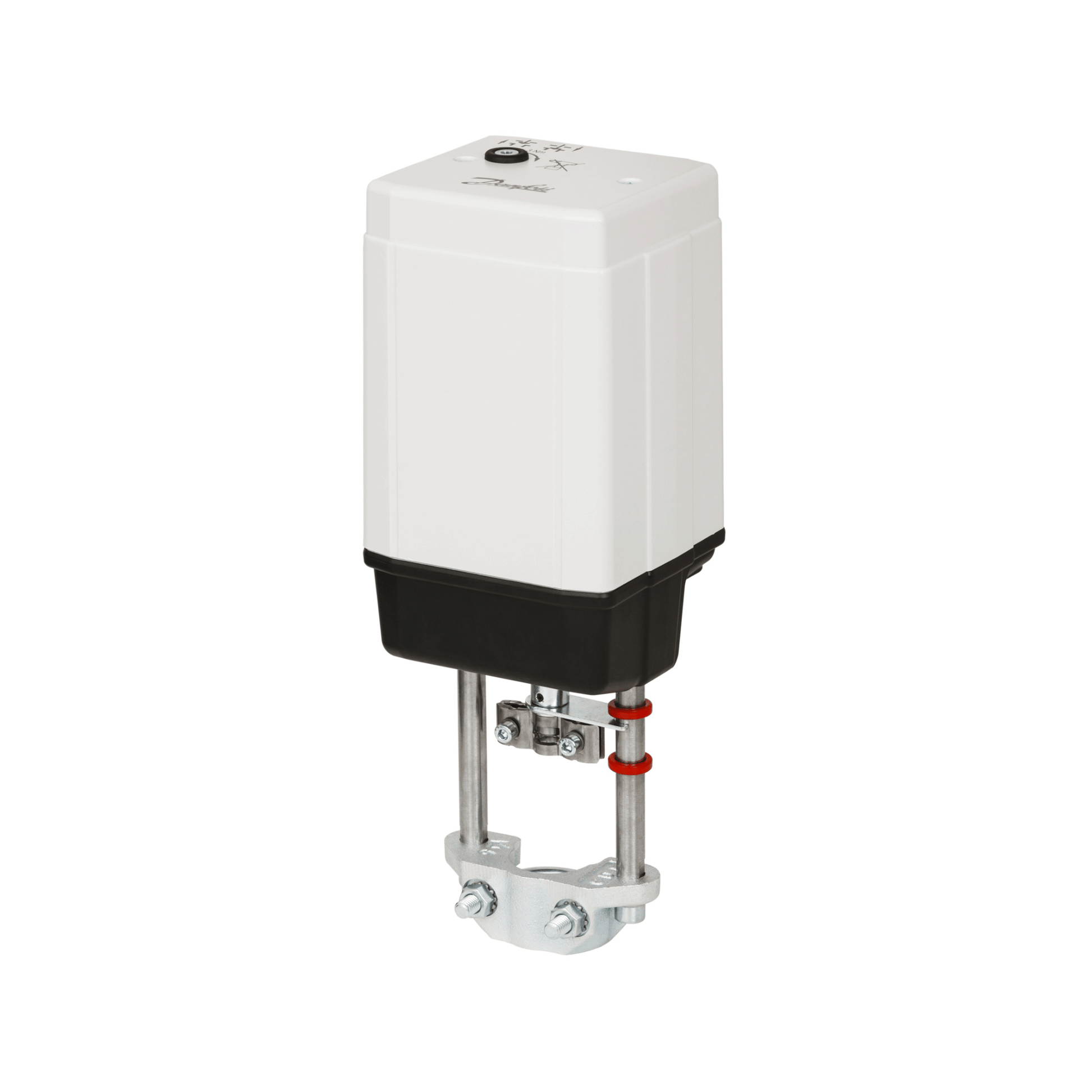

Danfoss AME 56 Electrical Actuator - 24 V - 082H3025

Datasheet

The actuators are used with valves:

• VFM 2 (DN 65-150) only in combination with AME 55,
• VFS 2 (DN 15-50) only in combination with AME 56. Clutch available on special request,
• VFS 2 (DN 65-100),
• VL 2/3 (DN 100),
• VF 2/3 (DN 100-150),
• VL 2/3 & VF 2/3 (DN 65, 80) only in combination with AME 56 and adapter 065Z0312,
• AFQM (DN 65-125) and AFQM 6 (DN 40-50)

Features:

• “Self adjustment” function
• Load related “Switch off“ function that prevents valve or actuator to be overloaded
• Diagnostic LED

Main data:

• Nominal voltage: 24 Vac, 50/60 Hz
• Control input signal:
• 0(4)-20 mA,
• 0(2)-10 Vdc
• Force:
• 2000 N (AME 55),
• 1500 N (AME 56)
• Stroke: 40 mm
• Speed:
• 8 s/mm (AME 55),
• 4 s/mm (AME 56)
• Max. medium temperature: 200 °C by insolated valve
• Manual operation
