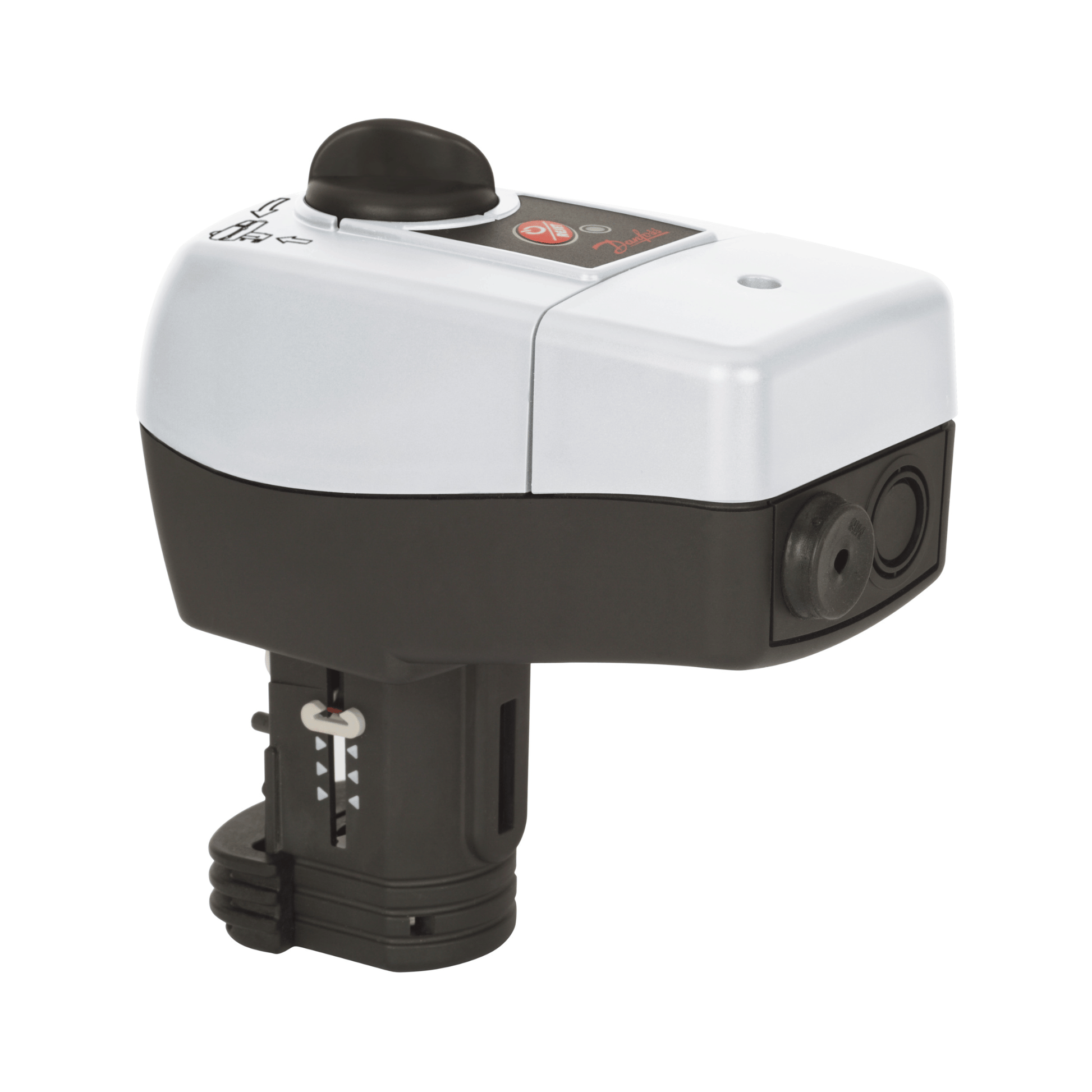

Danfoss AME 435 Electrical Actuator - 24V - 082H0161

Datasheet

AME 435 actuator is used with two and three-way valves type VRB, VRG, VF and VL up to DN 80 diameter and for AHQM DN 40-100.

Main data:

• Nominal voltage (AC or DC):
• 24 V, 50 Hz/60 Hz
• Control input signal:
• 0(4)-20 mA
• 0(2)-10 V
• Force: 400 N
• Stroke: 20 mm
• Speed (selectable):
• 3 s/mm
• 7,5 s/mm
• 15 s/mm
• Max. medium temperature: 130 °C
• Calibrating
• LED signalling
• External RESET button
• Output signal
• Manual operation

Features & benefits

• it automatically adapts its stroke to the valve end positions which reduces commissioning time (calibrating)
• valve flow adjustment feature; flow can be variably-adjusted from linear to logarithmic or opposite
• energy saving, cost reducing and energy efficiency improving anti-oscillation function
• the advanced design incorporates load related ‘switch-off’ to ensure that actuators and valves are not exposed to overload
