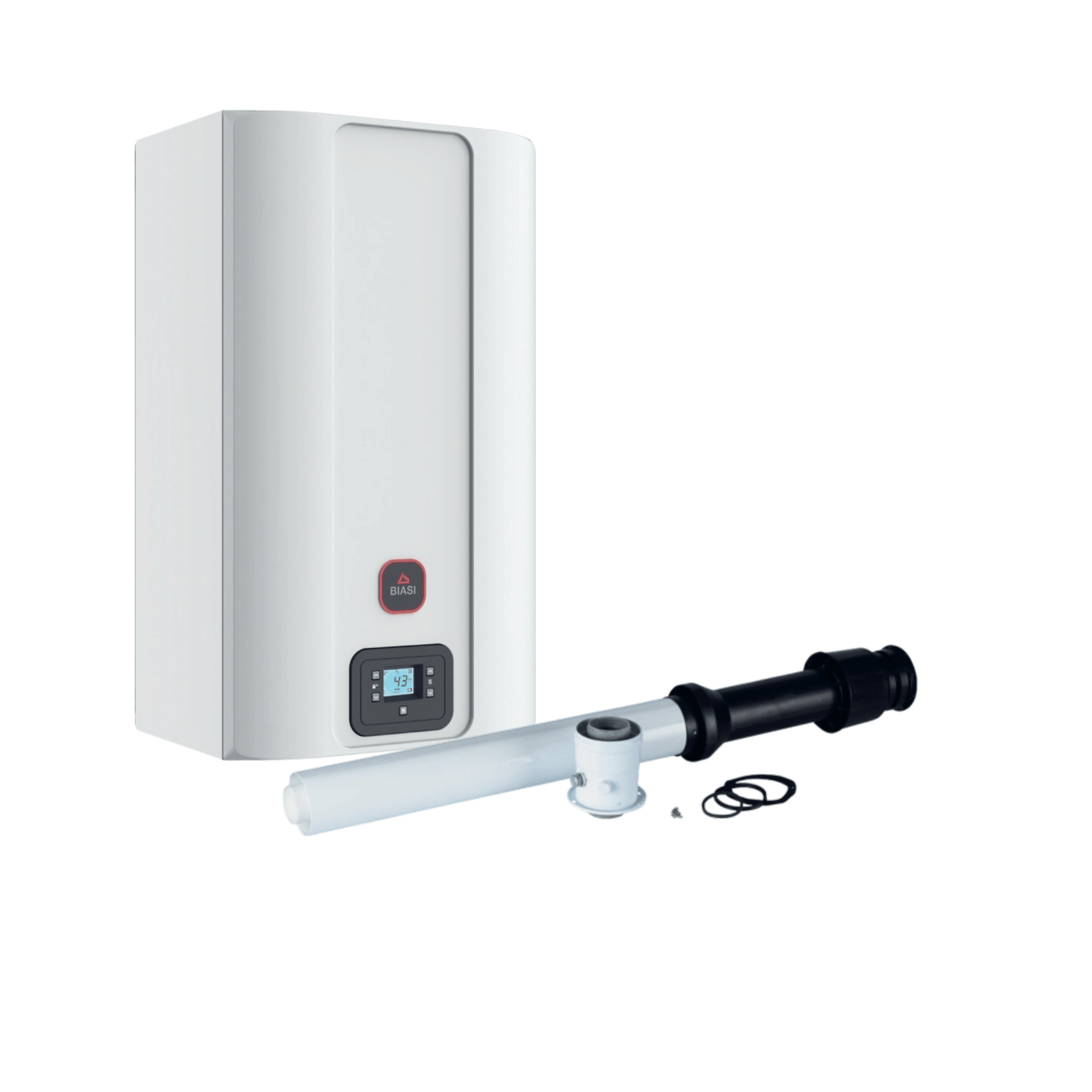

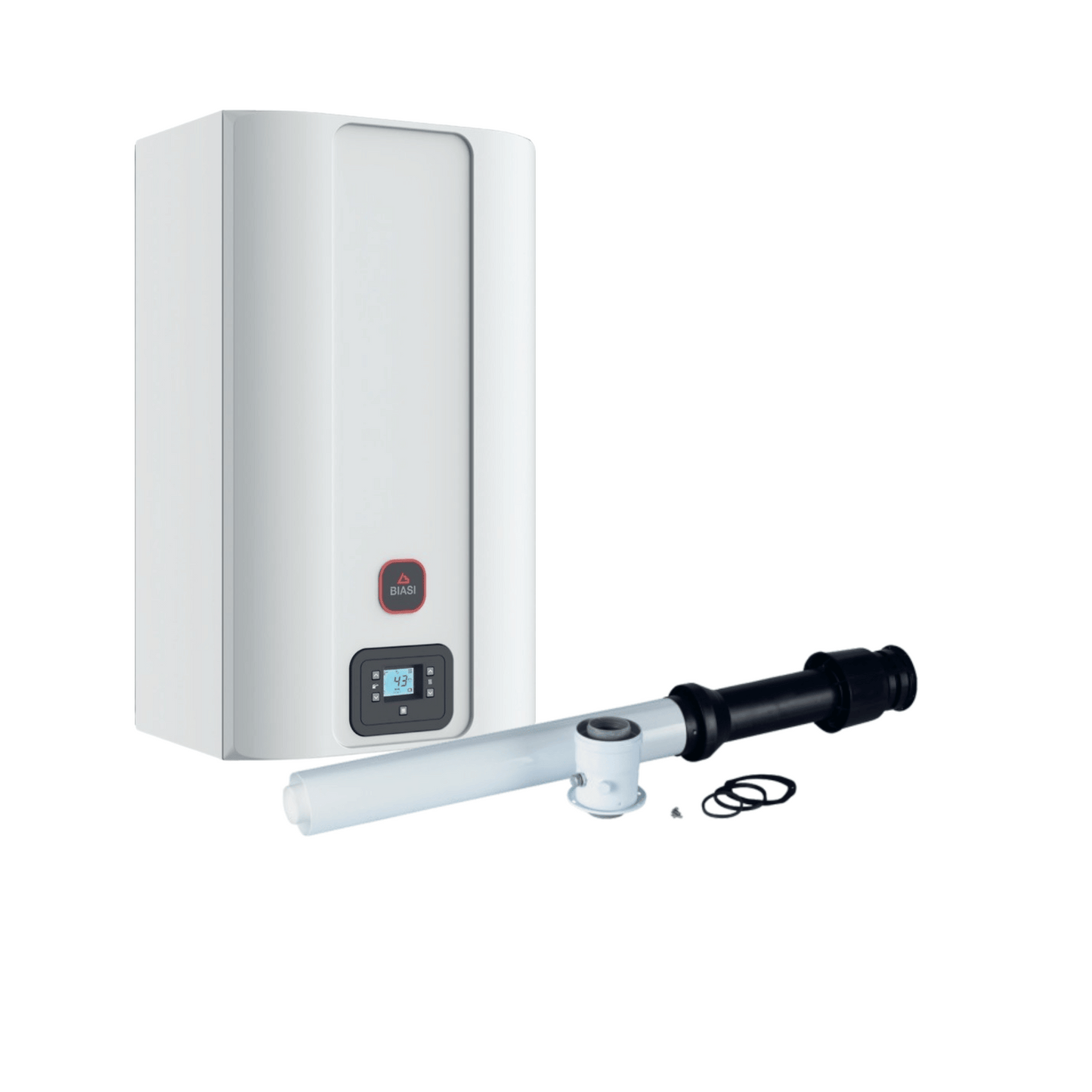

Biasi RinNova 30S System Boiler & Vertical Flue - Natural Gas / LPG - 30kW
Biasi RinNova 30S System Boiler & Vertical Flue - Natural Gas / LPG - 30kW
- Lead Time: 1-2 Working Days*
Regular price
£659.43
Regular price
Sale price
£659.43
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Boiler with Vertical Flue Kit
Available as Boiler Only or with Horizontal Flue as a pack
Biasi RinNova Adaptive System User Manual
- 7 Year Warranty
- ProFit Warranty - 8 Years
| RinNova Adaptive | 30S | |
| Nominal heating d.h.w. heat input | kW | 26,0/31,0 |
| Minimum heat input for heating/d.h.w | kW | 3,8/3,8 |
| Maximum useful heating/sanitary power 60°/80°C * | kW | 25,6/30,6 |
| Minimum useful heating/heating power 60°/80°C * | kW | 3,6/3,6 |
| Maximum useful heating/sanitary power 30°/50°C ** | kW | 28,3/33,7 |
| Minimum useful heating/sanitary power 30°/50°C ** | kW | 4,0/4,0 |
| Quantity of condensate at Q.nom. 30°/50°C (in heating mode) ** | 5 | |
| Quantity of condensate at Q.nom. 30°/50°C (in heating mode) ** | 0,6 | |
| Condensate pH | 4,0 | |
| Nom. efficiency 60°/80°C * | % | 98,6 |
| Min. efficiency 60°/80°C * | % | 94,5 |
| Nom. efficiency 30°/50°C ** | % | 108,7 |
| Min. efficiency 30°/50°C ** | % | 105,8 |
| Efficiency at 30 % load ** | % | 109,7 |
| Energy efficiency ηs | % | 94 |
| Thermal losses at the chimney with burner in operation | Pf (%) | 1,2 |
| Thermal losses at the chimney with off turned burner ΔT 50°C | 0,2 | |
| Thermal losses to the environment through the casing with the burner in operation with the burner in operation | Pd (%) | 0,2 |
| NOx Class | n° | 6 |
| Weighted NOx [Hs] *** | mg/kWh | 34 |
| Minimum/maximum heating temperature **** | °C | 25/80 |
| Minimum/maximum heating pressure | bar | 0,3/3 |
| Available heating head (at 1000 l/h) | mbar | 320 |
| Expansion tank capacity (total/useful) | l | 7 |
| Minimum/maximum d.h.w temperature | °C | 35/55 |
| Minimum/maximum d.h.w pressure | bar | 0,3/10 |
| Maximum flow rate (Δt = 25 K) / (Δt = 35 K) | l/min | 18,3/12,8 |
| Specific d.h.w flow (Δt = 30 K) ***** | l/min | 15,2 |
| Voltage / electric power at nominal heat input | V~/ W | 230/96 |
| Electric power at minimum heat input | W | 11 |
| Electric power in stand-by | W | 3 |
| Electric degree of protection | n° | IPX5D |
| Minimum/maximum flue gas temperature# | °C | 44/78 |
| Minimum/Maximum flue gas mass flow rate # | kg/s | 0,0044/0,0144 |
| Minimum/maximum air mass flow rate # | kg/s | 0,0044/0,0139 |
| Max. length of coaxial smoke outlet (Ø 60/100 mm / Ø 80/125 mm) | m | 10/12 |
| Max length of split flue exhaust (Ø 80+80 mm) | 40 | |
| Height x Width x Depth | mm | 700 x 400 x 300 |
| Weight | kg | 36 |
| Water content of the boiler | l | 2,0 |
* With return water temperatures that do not allow condensation.
** With return water temperatures that allow condensation.
*** With coaxial flue outlet 60/100 L 0.9 m and METHANE G20 gas.
**** At minimum useful power.
***** Referred to EN 625 standard.
# Values referred to tests with 80 mm 1 + 1 split flue and methane gas G20.
*Stock dependant
