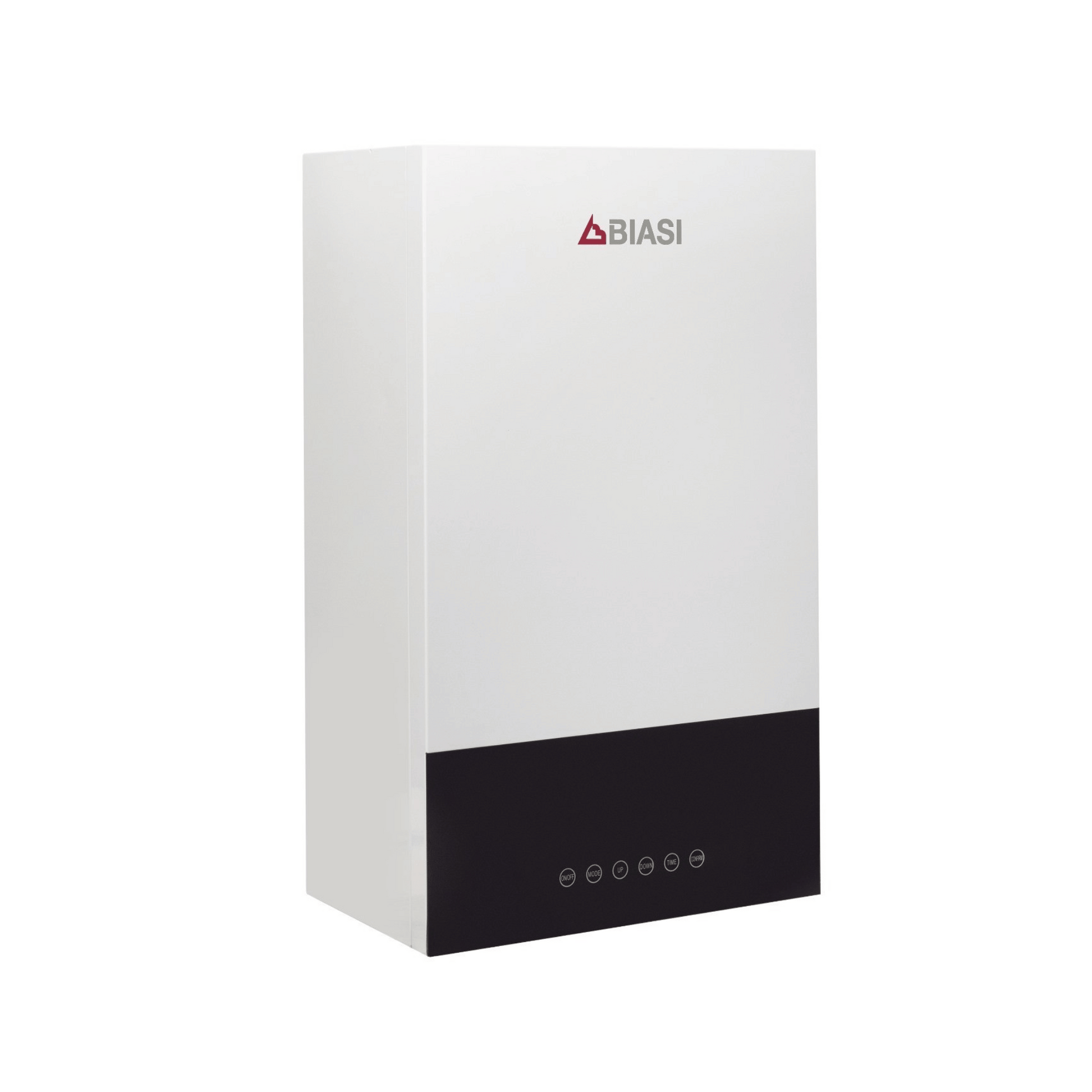

Biasi Pro Electric Combi Boiler & Fittings Pack - Three Phase - 25kW
Biasi Pro Electric Combi Boiler & Fittings Pack - Three Phase - 25kW
- Lead Time: 1-2 Working Days*
Couldn't load pickup availability
Electric boilers provide many benefits to homeowners, not least the ability to become carbon free when used with a renewable energy supply.
With Government legislation banning the installation of gas boilers in new-build properties from 2025, the Biasi Pro-Electric range of boilers is the perfect alternative.
Seamlessly switch
Our electric boilers work in a very similar way to a traditional gas boiler but can also be installed in properties where a gas boiler is not possible or where there is no gas supply to the property. It doesn’t need a flue, so can be sited anywhere. It is easy to install, comes pre-wired and fits seamlessly into the existing pipework and radiator system. There are minimum moving parts, making our Pro-Electric boilers very quiet, offering low-cost servicing and less need for repairs.
Environmental advantages The Biasi Pro-Electric boilers are almost 100% efficient, with power modulating from 2kw to full power, using less energy and therefore making the boiler cost-effective to run.
Benefits of the Biasi Pro-Electric Boiler Range
- Almost 100% efficient and power modulates to use less energy
- Carbon-free with renewable energy tariff
- Very few moving parts, so almost silent, minimal repairs and low servicing costs
- Easy to install, no flue required and comes pre-wired
- No carbon monoxide, gas leaks or condensate
- Neat and compact design with stylish touchscreen control and digital display
Technical specification
- Power: 6KW, 8KW, 10KW, 12KW, 14KW, 16KW, 20KW, 25KW
- Phase: 1 Phase Voltage Frequency: 230V~50Hz
- Phase: 3 Phase Voltage Frequency: 400V~50Hz
- Mode: System Type, Combi System
- Waterproof Level: 1PX4
- Function: Heating, Hot Water
| Pro Electric Single Phase System Boiler | |||
| Model | 6kW | 8kW | 12kW |
| Voltage | 230v | 230v | 230v |
| Current (Amps) | 26 | 35 | 52 |
| Recommended breaker (Amps) | 32 | 40 | 63 |
| Recommended cable size | 6mm² | 6mm² | 10mm² |
| Max. heating pressure | 2,5 bar | 2,5 bar | 2,5 bar |
| Min. heating pressure | 0,5 bar | 0,5 bar | 0,5 bar |
| Max. flow temp | 80°C | 80°C | 80°C |
| Min. flow temp | 30°C | 30°C | 30°C |
| Heating connection size | 3/4" M | 3/4" M | 3/4" M |
| PRV connection size | 15mm | 15mm | 15mm |
| Pro Electric Three Phase System Boiler | |
| Model | 16kW |
| Voltage | 400v |
| Current (Amps) | 23 |
| Recommended breaker (Amps) | 32 |
| Recommended cable size | 3x4mm² |
| Max. heating pressure | 2,5 bar |
| Min. heating pressure | 0,5 bar |
| Max. flow temp | 80°C |
| Min. flow temp | 30°C |
| Heating connection size | 3/4" M |
| PRV connection size | 15mm |
| Pro Electric Single Phase Combi Boiler | ||
| Model | 12kW | 14kW |
| Voltage | 230v | 230v |
| Current (Amps) | 52 | 61 |
| Recommended breaker (Amps) | 63 | 80 |
| Recommended cable size | 10mm² | 10mm² |
| Max. heating pressure | 2,5 bar | 2,5 bar |
| Min. heating pressure | 0,5 bar | 0,5 bar |
| Max. flow temp | 80°C | 80°C |
| Min. flow temp | 30°C | 30°C |
| HW connections | 1/2" M | 1/2" M |
| Heating connection size | 3/4" M | 3/4" M |
| PRV connection size | 15mm | 15mm |
| Pro Electric Three Phase Combi Boiler | |
| Model | 25kW |
| Voltage | 400v |
| Current (Amps) | 36 |
| Recommended breaker (Amps) | 40 |
| Recommended cable size | 3x6mm² |
| Max. heating pressure | 2,5 bar |
| Min. heating pressure | 0,5 bar |
| Max. flow temp | 80°C |
| Min. flow temp | 30°C |
| HW connections | 1/2" M |
| Heating connection size | 3/4" M |
| PRV connection size | 15mm |
*Stock dependant
