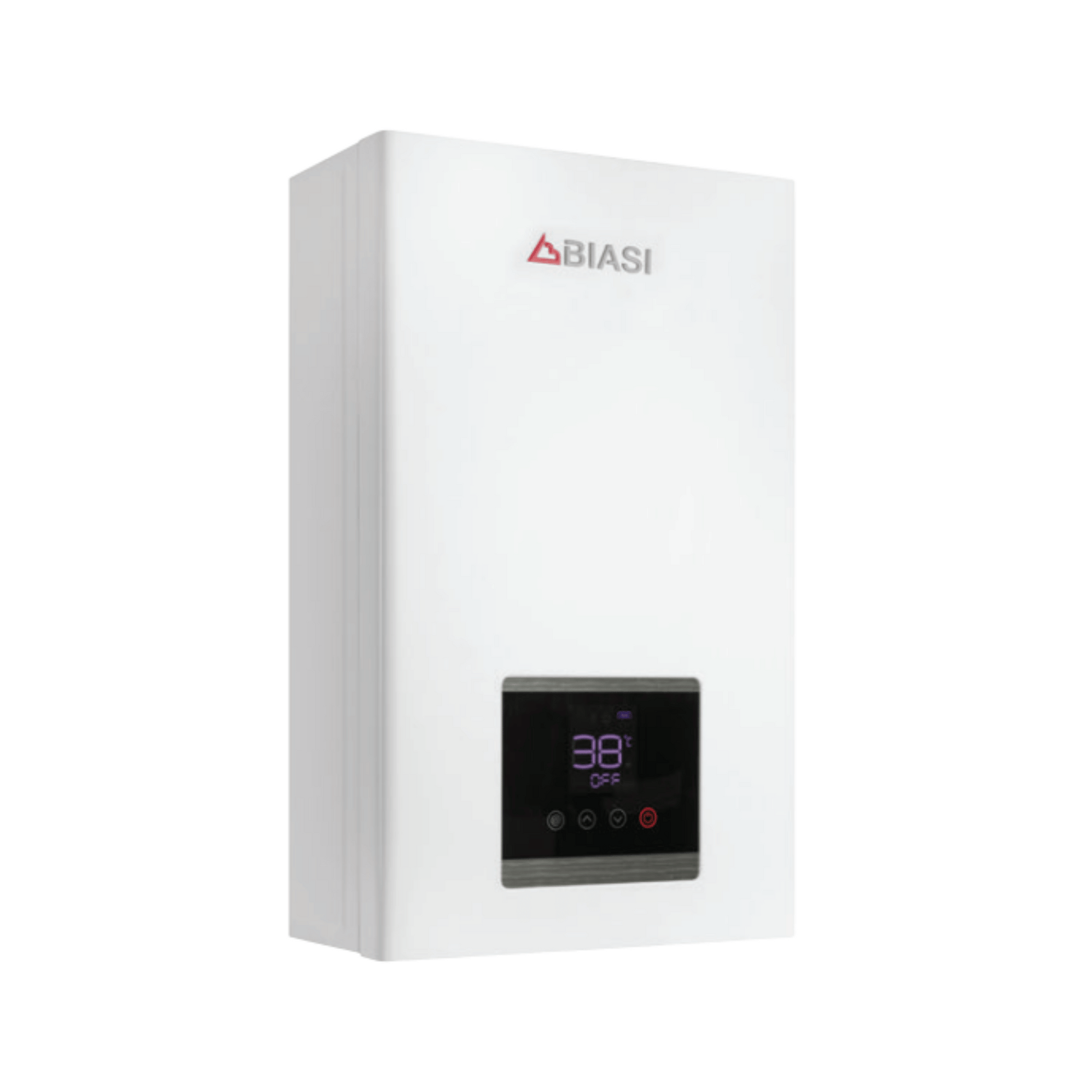

Biasi Multipoint Water Heater - Natural Gas - 16 Litre - 30kW
Biasi Multipoint Water Heater - Natural Gas - 16 Litre - 30kW
- Lead Time: 1-2 Working Days*
Couldn't load pickup availability
The all new Biasi Multipoint Water Heater
Supplied with Flue and Fitting Pack
The Biasi Multipoint Gas Instantaneous water heater is available in 14L and 16L (NG and LPG models) Offering outstanding performance and reliability in all every condition.
2 Yr Warranty: Biasi multipoint gas water heater comes with a standard 2 years manufactures warranty (parts and labour).
Ultra Compact Italian Design: At only 18.6cm in depth the slim line space saving appliance is well suited for any application.
Efficiency at its best: Ultra low Nox levels for an ultra clean and richer burn.
Designed and built for high DHW demands
Intelligent microprocessor control system: real time information…
- Amount of running water
- Current pressure
- Actual water inlet temperature
Electronic Ignition: Offers a electronic ignition system with flame isolation replacing the pilot flame resulting in lower operating costs and lower Nox levels.
“Al” Memory Function: The water heater can operate at the last previous temperature set.
LCD Display: Modern large LED Touch sensitive digital display. Temperature can be set between 35° C and 65°C.
Other Features:
- Oxygen Free Copper Heat exchanger - Copper heat exchanger for maximum heat transfer with maximum resistance to corrasion
- Non condensing - Noncondensing Technology, easy to install
- Up to 16l/min - Durable and powerful enough to tackle any high DHW usage
- Front Accessibility - Easier access via the front, no need for side clearances
- Off-Set the wall bracket - To give easier access to the flue elbow
- Flow Rates - Operate at a minimum flow rate of 2.5 l/m and water pressure of 0.2bar
|
Multipoint |
14S |
16S | |
| Nominal heat input (Hi) | kW | 28,0 | 30,0 |
| Maximum water flow (increase to 25°) | kg/min | 14,0 | 16,0 |
| Device type | C13-33 | C13-33 | |
| Maximum water pressure (Pw) | bar | 10 | 10 |
| Minimum water pressure (Pw) | bar | 0,2 | 0,2 |
| Power supply | 230V ~ 50 Hz | 230V ~ 50 Hz | |
| Electrical protection level | IPX4 | IPX4 | |
| Destination countries | GB | GB | |
| Gas inlet connection | G 1/2 | G 1/2 | |
| Cold water inlet connection | G 1/2 | G 1/2 | |
| Hot water outlet connection | G 1/2 | G 1/2 | |
| Diameter of the exhaust pipe of the combustible gases | mm | Ø 60 x Ø 100 | Ø 60 x Ø 100 |
| Load profile | XL | XL | |
| Energy efficiency of the water heating system | % | 84,0 | 80,5 |
| Energy efficiency of the water heating system | A | A | |
| Daily gas consumption (correct) | kWh | 23,583 | 24,845 |
| Daily electricity consumption (correct) | kWh | 0,064 | 0,061 |
| Annual fuel consumption | AFC (GJ) | 18 | 19 |
| Annual electricity consumption | AEC (kWh) | 14 | 14 |
| NOx | mg/kWh | 29 | 47 |
| Internal sound power level | dB | 61 | 63 |
| NOx Class | 6 | 6 |
| Gas Type | 2H-G20-20mbar / 3B-G30mbar / 3P-G31-37mbar |
| Method of ignition | Automatic pulse ignition controlled directly from water opening |
*Stock dependant
