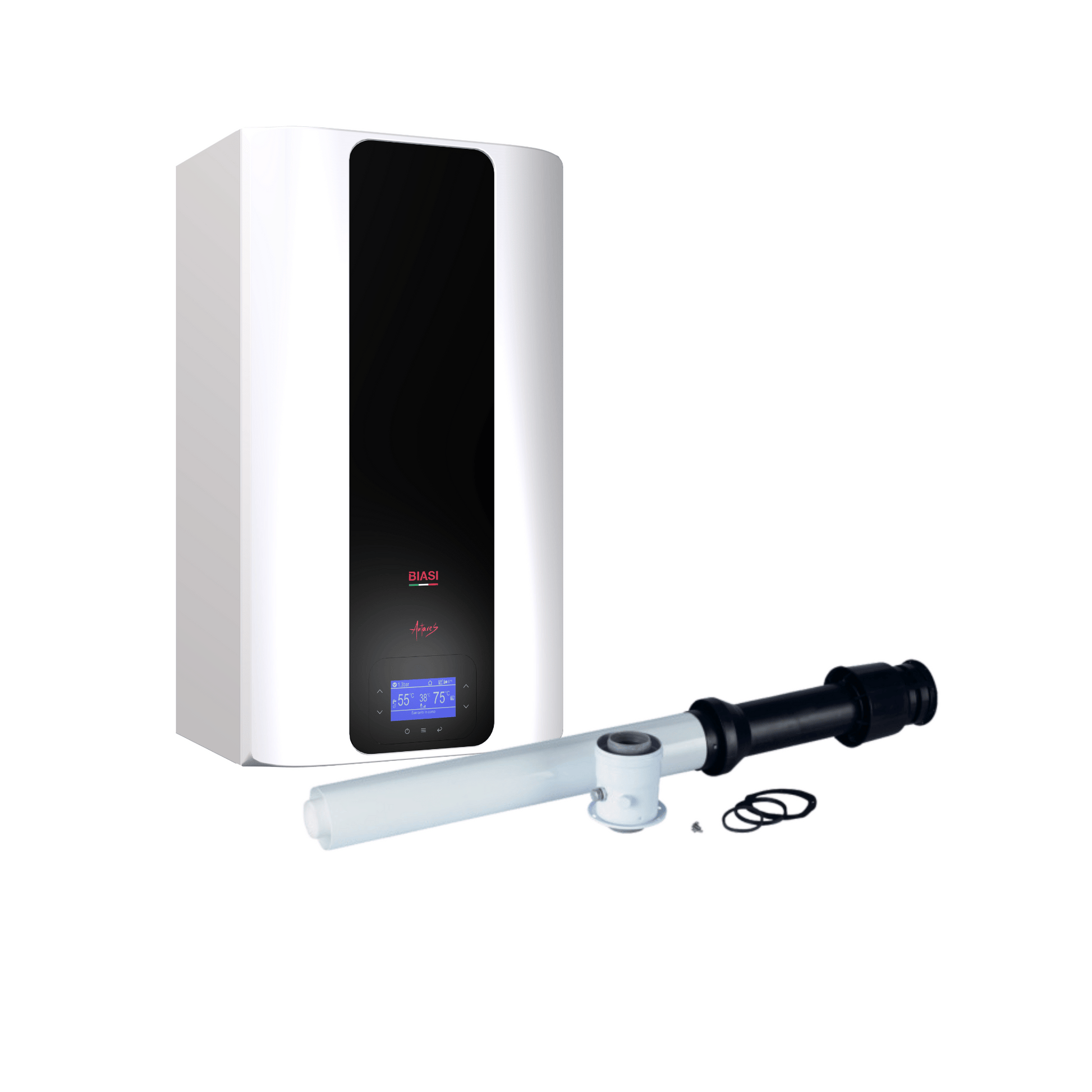

Biasi Antares Plus 35C Combi Boiler & Vertical Flue - Natural Gas / LPG - 35kW

Boiler with Vertical Flue Kit

Available as Boiler Only or with Horizontal Flue as a pack

Biasi Antartes Brochure

Biasi Antares User Manual

Antares, high efficiency wall hung condensing boiler

• Up to 1:21 Modulation
• 25 - 30 - 35kW/li>
• DWH / CH
• Up to 20 L/min
• 10L Expansion Vessel
• Grundfos ErP Pump
• Gas Adaptive NG / LPG / Hydrogen
• Multifunctional Touch Display
• Energy Class A
• NOx 6 Class
• Wi-Fi Ready
• Plastic Free
• Biasi Connect
• 9 Year Warranty
• ProFit Warranty - 10 Years

Available in combination versions for heating and DHW production, Antares has a complete heat output range – 25, 30 and 35 kW models – all with very compact dimensions.

High performance due to its innovative CERAMAT℗ ceramic fibre heat exchanger, designed to provide high efficiency without degradation over time. Easy to use thanks to the digital control panel with a large display, designed to communicate with the user in an easy and convenient manner.

Dimensions

• 700 x 400 x 300 mm

Tax credits and incentives

Antares is an energy class A and energy class A+, in other words the highest energy efficiency level achievable with a boiler.

One model suitable for all situations

Even the most extreme where very low power is required for space heating and at the same time a large quantity of hot water

The modulation of a boiler is the ability to generate a more or less intense burner flame. The modulation ratio therefore indicates the ratio between the maximum and minimum power that can be developed by the burner. In the case of Antares, the maximum power is more than 20 times the minimum. Thanks to its high modulation range (1/21), Antares is a versatile boiler that guarantees:

• High energy efficiency
• High domestic hot water output at 20 L/min @ 25° temperature differential in addition, a low continuous power output results in quiet operation and a longer boiler life.

Hydrogen Ready

For an ongoing commitment to the environment

Among the alternatives to traditional fuels, the use of hydrogen emerges as a promising solution; the combustion of hydrogen can only release water vapour into the atmosphere and minimal quantities of nitrogen oxides: a great advantage from an ecological point of view. In addition, existing infrastructure such as the methane transport and distribution network in Italy can already transport mixtures of methane and hydrogen at 20% by volume. Installing a Hydrogen Ready 20% boiler means preparing for a future less dependent on methane.

There are two advantages for consumers who choose a Hydrogen Ready 20% boiler:

• Investing in an appliance that can have a life of more than 20 years with technology that is ready for future developments in the industry without replacing the generator.
• Invest in a technologically advanced appliance in line with the most advanced solutions for sustainable energy management.

Adaptive Gas Technology

less consumption, more efficiency, less emissions

The innovative Adaptive Gas technology, with which Antares is equipped, allows for completely autonomous adaptation of boilers to different types and qualities of gas. Addition to detecting the flame, the electrode also detects the characteristics of the gas and automatically adapts the parameters of combustion to maintain the highest level of efficiency, resulting in reduced consumption and emissions compared to traditional control systems. The Adaptive Gas system makes the boiler ready to operate with any type of gas without changing any hardware.

Antares		25C	30C	35C
Nominal heating/DHW heat input	kW	21,0/26,0	26,0/31,0	31,0/34,9
Minimum heat input for heating/DHW	kW	2,6/2,6	3,5/3,5	3,5/3,5
Maximum usable heating/DHW power 60°/80°C *	kW	20,7/25,6	25,7/30,7	30,7/34,4
Minimum usable heating/DHW power 60°/80°C *	kW	2,5/2,5	3,3/3,3	3,3/3,3
Maximum usable heating/DHW power 30°/50°C **	kW	22,8/28,2	28,2/33,7	33,7/37,9
Minimum usable heating/DHW power 30°/50°C **	kW	2,7/2,7	3,7/3,7	3,7/3,7
Quantity of condensate at Q.nom. 30°/50°C (in heating mode) **	l/h	4,2	5,0	5,6
Quantity of condensate at Q.nom. 30°/50°C (in heating mode) **	l/h	0,5	0,6	0,6
Condensate pH		4,0	4,0	4,0
Nom. efficiency 60°/80°C *	%	98,5	98,8	98,9
Min. efficiency 60°/80°C *	%	94,7	95,1	95,1
Nom. efficiency 30°/50°C **	%	108,7	108,8	108,6
Min. efficiency 30°/50°C **	%	105,3	105,9	105,9
Efficiency at 30 % load **	%	109,9	109,8	109,8
Energy efficiency ηs	%	94	94	94
Thermal losses at the flue with burner in operation	Pf (%)	1,3	1,0	0,9
Thermal losses at the flue with burner turned off ΔT 50°C	Pfbs (%)	0,2	0,2	0,2
Thermal losses to the environment through the casing with the burner in operation	Pd (%)	0,7	0,9	0,9
NOx Class	n°	6	6	6
Weighted NOx [Hs] ***	mg/kWh	42	35	32
Minimum/maximum heating temperature ****	°C	25/85	25/85	25/85
Minimum/maximum heating pressure	bar	0,3/3	0,3/3	0,3/3
Available heating head (at 1000 l/h)	mbar	350	330	330
Expansion tank capacity (total/usable)	l	10	10	10
Minimum/maximum DHW temperature	°C	30/60	30/60	30/60
Minimum/maximum DHW pressure	bar	0,5/10	0,5/10	0,5/10
Maximum flow rate (Δt = 25 K) / (Δt = 35 K)	l/min	15,4/10,7	18,4/12,9	20,6/14,4
Specific DHW flow (Δt = 30 K) *****	l/min	12,9	15,4	17,2
Voltage / power draw at nominal heat input	V~/ W	230/94	230/98	230/110
Power draw at minimum heat input	W	54	56	56
Power draw in stand-by	W	4	4	4
Ingress protection rating	n°	IPX5D	IPX5D	IPX5D
Minimum/maximum flue gas temperature#	°C	41/80	41/82	41/84
Minimum/Maximum flue gas mass flow rate #	kg/s	0,0013/0,0120	0,0017/0,0144	0,0017/0,0162
Minimum/maximum air mass flow rate #	kg/s	0,0012/0,0115	0,0016/0,0139	0,0016/0,0156
Max. length of coaxial flue outlet (Ø 60/100 mm / Ø 80/125 mm)	m	10/12	10/12	10/12
Max length of twin flue exhaust (Ø 80+80 mm)		40	40	40
Height x Width x Depth	mm	700 x 400 x 300	700 x 400 x 300	700 x 400 x 300
Weight	kg	31,5	36,0	36,0
Boiler water content	l	2,0	2,5	2,5



* With return water temperatures that do not allow condensation
**With return water temperatures that allow condensation
***With coaxial flue outlet 60/100 L0.9 and G20 natural gas.
****At minimum useable power.
***** With reference to EN 625.
# Values relate to tests with 80mm 1 + 1 twin flue and G20 natural gas.




*Stock dependant
