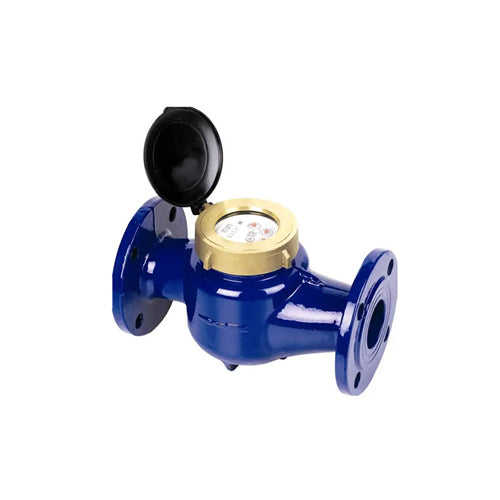

Bell Flow Systems VuAqua Dry Dial Multi Jet Cold Water Meter - No Pulse - 2" DN50 Flanged - MJ-SDC-50/FL

Description

The VuAqua MJ-SDC multi-jet mechanical water meter comes complete with a dry type dial which is suitable for a variety of different metering applications. These include sub metering and light industrial locations. The VuAqua MJ-SDC has a compact design making it suitable for most metering applications. The water meter comes complete with integral filtration strainer to stop large particles.

Features & Benefits

• 2" DN50 Flanged VuAqua Multi Jet Cold Dry Dial Water Meter - No Pulse
• 2" DIN PN16 flanged
• Cold water flow meter
• Multi-jet impeller meter type
• Compact design for most metering applications
• Drinking water approved (75/33/EEC)
• Supplied with BSP fittings (nuts, tails and washers)
• Integral filtration strainer included to stop large particles
• Tamper evident wire lock & seal

Specification

• Accuracy Class: B
• Body Material: Epoxy Coated Brass
• Maximum Temperature: 30°C (T30)
• Max. Pressure: 16 Bar

• Mix. Reading: 0.05 Litres
• Max. Reading: 99999.9999 m3
• Dry Dial: Q3 2.5 m3/hour
• Dimensions: 185.5mm (Height) x 300mm (Length - including connection and gasket without compression)

• Weight: 5.2000kg
• Certifications: WRAS Approved, MID Approved R80 T30
