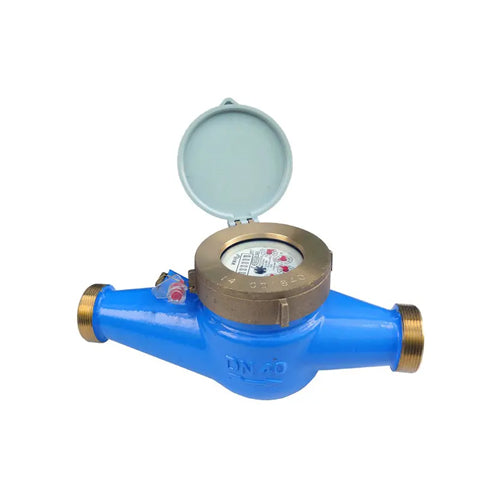

Bell Flow Systems VuAqua Dry Dial Multi Jet Cold Water Meter - 10 Litre/Pulse - 3/4" DN20 - MJ-SDC-20 K=10
Bell Flow Systems VuAqua Dry Dial Multi Jet Cold Water Meter - 10 Litre/Pulse - 3/4" DN20 - MJ-SDC-20 K=10
- Lead Time: 2-3 Working Days*
Couldn't load pickup availability
Description
The VuAqua MJ-SDC multi-jet mechanical water meter comes complete with a dry type dial which is suitable for a variety of different metering applications. These include general purpose, sub-tenant and commercial metering tasks. The VuAqua MJ-SDC has a compact design making it suitable for most metering applications. The water meter can be installed vertically or horizontally and comes complete with integral filtration strainer to stop large particles. The VuAqua comes complete with a pulse read out system which allows a pulse rating of 10 pulse/litre to be emitted. The emitted pulse can be read by various types of remote output readers
Features & Benefits
- 3/4" DN20 VuAqua Cold Water Dry Dial Multi Jet Water Meter - 10 Litre/Pulse
- 3/4" DN20 BSP connections
- Cold water flow meter
- Multi-jet impeller meter type
- Compact design for most metering applications
- Accuracy Class B
- Comes complete with a frost resistant dry dial
- Drinking water approved (75/33/EEC)
- Supplied with BSP fittings (Nuts, tails and washers)
- Integral filtration strainer included to stop large particles
- Tamper evident wire lock & seal
- MID Approved R80 T30
- WRAS Approved
- 10 Litres Per Pulse Reed Switch included
Specification
- Size: 3/4" BSP Fittings
- Body Material: Epoxy Coated Brass
- Maximum Temperature: 30°C (T30)
- Max Pressure (bar): 16
- Mix. Reading (Litre): 0.05
- Max. Reading (m3): 99999.9999
- Dry Dial: Q3 2.5 m3/hour
- Weight: 1.7000 kg
- Height: 107.5mm
- Length (excluding connection): 190mm
- Length (including connection): 294mm
- * Please note: * This is the total length including connection and gasket without compression
*Stock dependant
