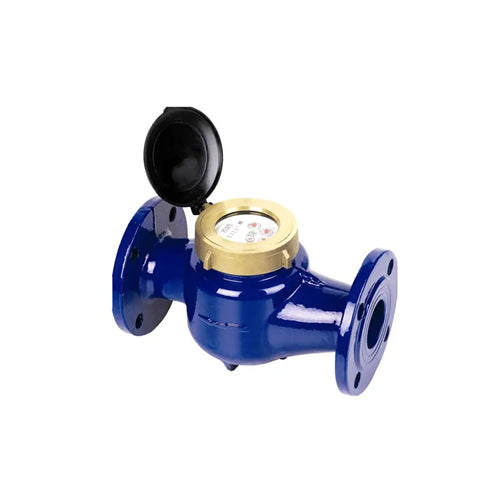

Bell Flow Systems VuAqua Dry Dial Multi Jet Cold Water Meter - 10 Litre/Pulse - 2" DN50 Flanged - MJ-SDC-50/FL K=10
Bell Flow Systems VuAqua Dry Dial Multi Jet Cold Water Meter - 10 Litre/Pulse - 2" DN50 Flanged - MJ-SDC-50/FL K=10
- Lead Time: 2-3 Working Days*
Couldn't load pickup availability
Description
The VuAqua MJ-SDC multi-jet mechanical water meter comes complete with a dry type dial which is suitable for a variety of different metering applications. These include sub metering and light industrial locations. The VuAqua MJ-SDC has a compact design making it suitable for most metering applications. The water meter comes complete with integral filtration strainer to stop large particles. The VuAqua comes complete with a pulse read out system which allows a pulse rating of 10 pulse/litre to be emitted. The emitted pulse can be read by various types of remote output readers
Features & Benefits
- 2" DN50 VuAqua Multi Jet Cold Dry Dial Water Meter - 10 Litre/Pulsed
- 2" DIN PN16 Flanged
- Cold water flow meter
- Multi-jet impeller meter type
- Compact design for most metering applications
- Accuracy Class B
- Comes complete with a frost resistant dry dial
- Drinking water approved (75/33/EEC)
- Supplied with BSP fittings (Nuts, tails and washers)
- Integral filtration strainer included to stop large particles
- Tamper evident wire lock & seal
- MID Approved R80 T30
- WRAS Approved
- 10 Litres Per Pulse Reed Switch included
Specification
- Size: 2" BSP Fittings
- Body Material: Epoxy Coated Brass
- Maximum Temperature: 30°C (T30)
- Max Pressure (bar): 16
- Mix. Reading (Litre): 0.05
- Max. Reading (m3): 99999.9999
- Dry Dial: Q3 2.5 m3/hour
- Weight: 5.2000kg
- Height: 185.5mm
- Length (including connection): 300mm
- * Please note: * This is the total length including connection and gasket without compression
*Stock dependant
