Baxi Air Source Heat Pump Cylinder - 250 Litre - 7837492
Baxi Air Source Heat Pump Cylinder - 250 Litre - 7837492
- Lead Time: Direct from our Supplier, Usually 10-14 Working Days*
Regular price
£1,606.30
Regular price
Sale price
£1,606.30
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

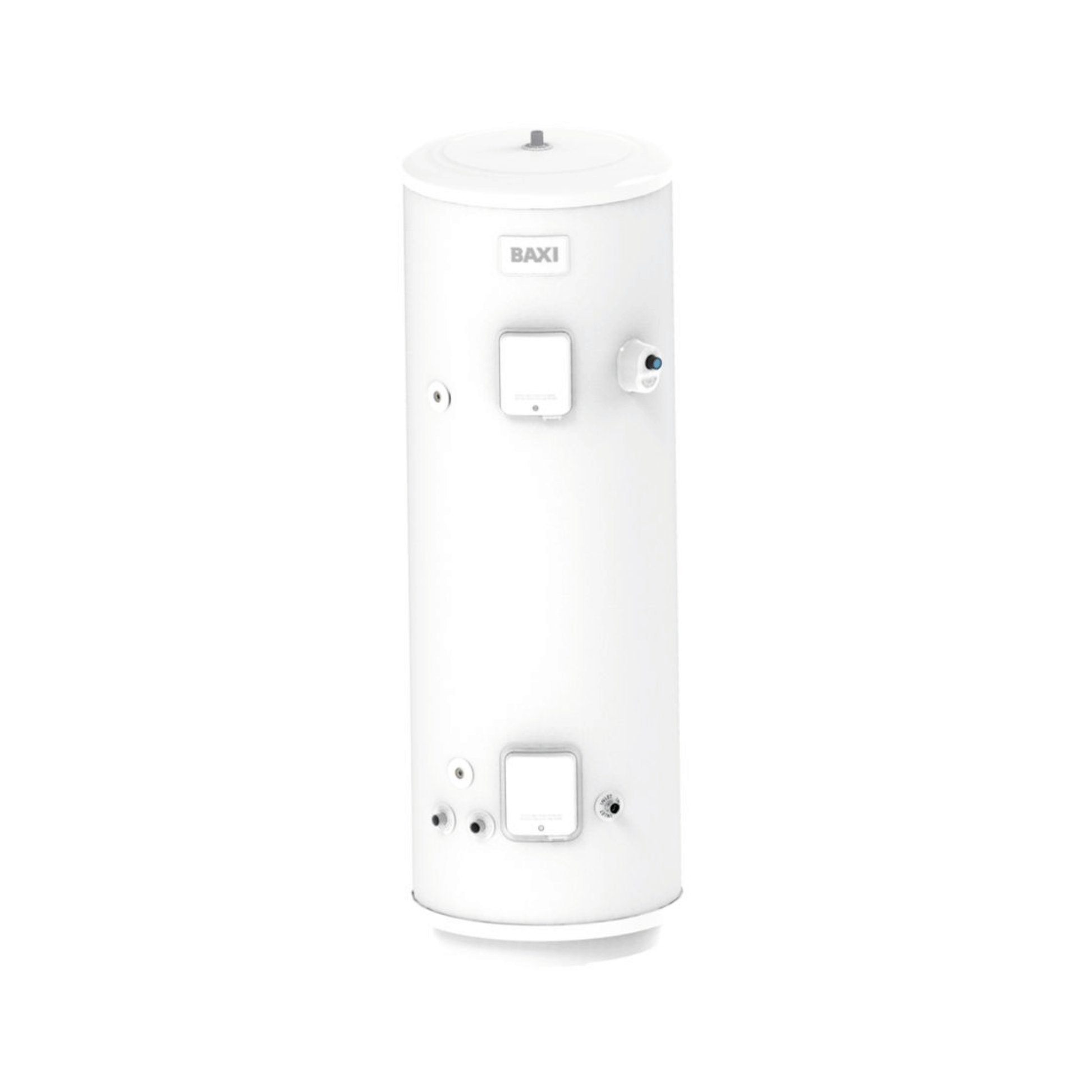

Baxi Air Source Heat Pump Cylinder
Baxi Air Source Heat Pump Cylinder Installation & Service Manual
The Baxi Air Source Heat Pump Cylinder has been specially designed with a high surface area heat exchanger specifically to be used with heat pumps.
Easy to install and efficient the in-built back-up immersion heaters support heat pumps for continuous hot water with excellent flow rates up to 76L/min of hot water at 3 bar pressure.
Features and Benefits
- Multiple volumes - Available in volumes of 210, 250 or 300 litres
- Stainless steel - Corrosion-resistant stainless-steel build – made by the experts at Megaflo and Heatrae Sadia
- Continuous hot water - In-built back-up immersion heaters to support heat pumps for continuous hot water
- Kit included - Immersion Heater Relay Kit in box including Immersion Heater Relay, Immersion Heater Relay Box and DHW temperature probe extension
- Fast recovery - High performance 'coil-in-coil' heat exchanger for exceptionally fast recovery times
Technical Specifications
| Product Model | 210 | 250 | 300 |
|---|---|---|---|
| Product Code | 7837415 | 7837492 | 7837563 |
| Product Information | |||
| Nominal capacity (litres) | 210 | 250 | 300 |
| Insulation thickness (mm) | 60 | 60 | 60 |
| Immersion heater rating (1 x 3kW) | 1 x 3 | 1 x 3 | 1 x 3 |
| Boost immersion heater (1 x 3kW) | 1 x 3 | x 3 | 1 x 3 |
| Standing heat loss (kWh/year) | 547.5 | 649.7 | 748.3 |
| Standing heat loss | 1.5kW/24h | 1.78kW/24h | 2.05kW/24h |
| Max flow @ 3.5 bar (litres per minute) | 76 | 76 | 76 |
| Max flow @ 1 bar (litres per minute) | 45 | 45 | 45 |
| Storage volume in litres @ 3 bar | 209 | 246 | 89 |
| The water heating energy efficiency class of the model | B | C | C |
| Volumetrics | |||
| Height (mm) | 1524 | 1837 | 2088 |
| Width (mm) | 579 | 579 | 579 |
| Depth (mm) | 652 | 652 | 652 |
| Weight (kg) | 60 | 69 | 74 |
