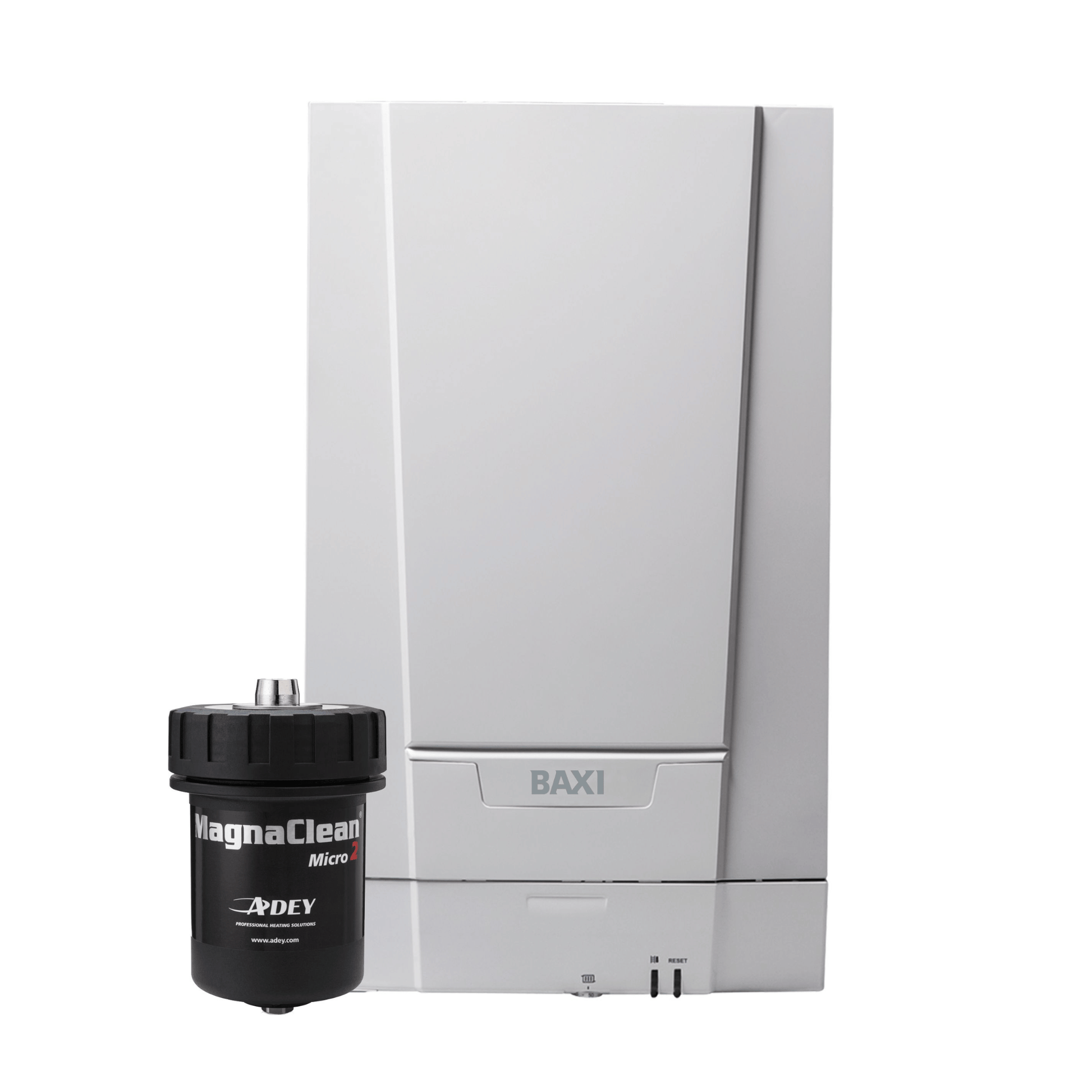

Baxi 830 Heat with MagnaClean Micro2 Filter - Heat Only Boiler - 7749869
Baxi 830 Heat with MagnaClean Micro2 Filter - Heat Only Boiler - 7749869
- Lead Time: In stock, ready for next day delivery*
Regular price
£1,263.16
Regular price
Sale price
£1,263.16
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Baxi 800 Heat
Our Baxi 800 Heat Only boiler comes with a 10-year warranty and filter in the box.
Baxi 800 Heat User Guide Baxi 800 Heat Installation & Service ManualWarranty
10-year parts and labour warranty†
Filter included
Comes with an Adey Micro2 magnetic system filter to protect your heating system and boiler*
Compact size
Fits inside a standard kitchen cupboard and a rear flue option for an even neater finish
Compatible
Compatible with market-leading Megaflo Eco cylinder
Dimensions
- A: Boiler width = 370mm
- B: Boiler height = 625mm
- C: Boiler depth = 270mm
- D: Side clearance = 5mm
- E: Upper clearance = 190mm*, 35mm* if used rear flue
- F: Lower clearance = 120mm*, 35mm* in 300m deep wall cupboard
- G: Front clearance = 5mm* in operation (500mm for servicing)
Specification
| Product Model | 16 | 19 | 25 | 30 |
|---|---|---|---|---|
| Product Code | 7749866 | 7898832 | 7749868 | 7749869 |
| Controls and accessories | ||||
| Operating mode selector switch with reset (Yes/No) | Yes | Yes | Yes | Yes |
| User adjustable CH temperature (Range - e.g. 45° to 82°) | Yes | Yes | Yes | Yes |
| LED temp/status/fault diagnosis display (Yes/No) | Yes | Yes | Yes | Yes |
| Baxi twin channel wired programmer -7212443 | Optional | Optional | Optional | Optional |
| Baxi room thermostat -720971601 | Optional | Optional | Optional | Optional |
| Gas | ||||
| Boiler Plus ErP (%) | 93 | 93 | 93 | |
| SAP 2009 annual efficiency (PCDB/SEDBUK) % | 89.2 | 89.2 | 89.1 | 89.1 |
| NOx class | 6 | 6 | 6 | 6 |
| ErP Product Information | ||||
| NOx (mg/kWh) | 20 | 25 | 24 | 24 |
| Sound Power Level, Indoors (LWA dB) | 39 | 41 | 45 | 49 |
| Space Heating Efficiency Class | A | A | A | A |
| Heat Input CH - kW max gross (QnHs) | 18.32 | 21.75 | 28.62 | 34.35 |
| Heat Input CH - kW min gross (QnHs) | 8.59 | 8.59 | 8.59 | 8.59 |
| Heat Output CH (non condensing) kW (Pn) | 16 | 19 | 25 | 30 |
| Heat Output CH (non condensing) kW (Pn) | 7.5 | 6.4 | 7.5 | 7.5 |
| Gas supply connection (mm) | 22 | 22 | 22 | 22 |
| Inlet supply pressure (natural gas) mbar | 20 | 20 | 20 | 20 |
| Maximum gas rate (m3/hr) | 1.75 | 2.07 | 2.73 | 3.27 |
| Mechanical and hydraulic | ||||
| Compartment ventilation required (Yes/No) | No | No | No | No |
| Flow / return pipe size (mm) | 22 | 22 | 22 | 22 |
| Condensate discharge pipe size (mm) | 21.5 | 21.5 | 21.5 | 21.5 |
| Electrical | ||||
| Electrical supply (Volts/Hz) | 230V/50Hz | 230V/ 50Hz | 230V/50Hz | 230V/50Hz |
| Permanent live required (Yes/No) | No | No | No | No |
| Switched live (Yes/No) | Yes | Yes | Yes | Yes |
| Electrical power cable fitted as standard (1m of 3 core) | Yes | Yes | Yes | Yes |
| Power consumption (Watts) | 20 | 23 | 33 | 44 |
| External fuse rating (Amps) | 3 | 3 | 3 | 3 |
| Internal fuse rating | 1.6T | 1.6T | 1.6T | 1.6T |
| Boiler IP rating (electrical protection) -Approval category | IPX4D | IPX4D | IPX4D | IPX4D |
| Pump overrun (Yes/No) | No | No | No | No |
| Concentric flue system | ||||
| Standard telescopic concentric flue (Length in mm) | 315-500 | 315-500 | 315-500 | 315-500 |
| Horizontal and Vertical concentric (60/100 mm) - Max equivalent length (m) | 6 | 6 | 6 | 6 |
| Horizontal and Vertical concentric (60/100 mm) - Reduction per 135° bend (m) | 0.5 | 0.5 | 0.5 | 0.5 |
| Horizontal and Vertical concentric (60/100 mm) - Reduction per 93° bend (m) | 1 | 1 | 1 | 1 |
| Weights | ||||
| Installer lift weight (boiler) Max (kg) | 17.4 | 17.4 | 17.4 | 19.5 |
| Gross packaged boiler weight (kg) | 21.3 | 19.4 | 21.3 | 21.3 |
