• Baxi 618 System 2 - System Boiler - 7802020
1 1

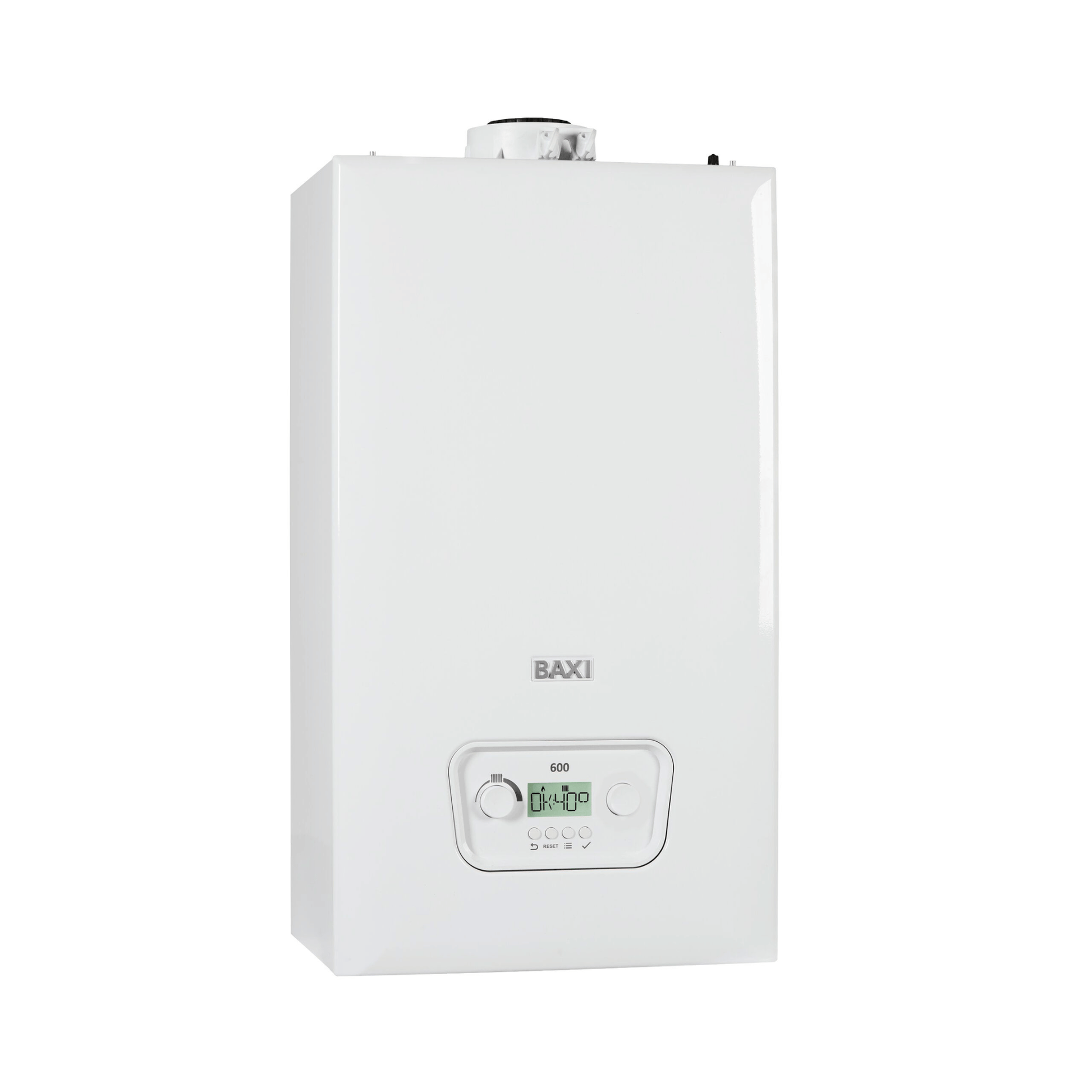

Baxi 618 System 2 - System Boiler - 7802020

Baxi 618 System 2 - System Boiler - 7802020

  • Lead Time: In stock, ready for next day delivery*
£1,052.63
£1,052.63
Sale Sold out
Shipping calculated at checkout.

Baxi 600 System 2

The Baxi 600 System 2 boiler is the perfect option when you need lots of hot water or have more than one bathroom.

It is compatible with Baxi cylinders and the Megaflo Eco range and comes with a 7-year parts and labour warranty†.

Baxi 600 System 2 User Guide Baxi 600 System 2 with External Pressure Gauge User Guide Baxi 600 System 2 Installation & Service Manual Baxi 600 System 2 with External Pressure Gauge Installation & Service Manual

Warranty

7-year parts and labour warranty for peace of mind†

Smart thermostat

Compatible with Baxi uSense smart thermostat, which you can control using an app on your phone

Ready for winter

Pre-heated condensate trap to help prevent freezing in winter – less risk of frozen condensate pipes!

Fuel types

Works with natural gas or LPG, without a conversion kit

Compact size

Lightweight and compact cupboard fit

Pressure gauge

External analogue pressure gauge for easy self-top up, reducing the need for engineer call outs

Baxi 600 System 2 Boiler Dimensions

Dimensions

  • A: Boiler width = 395mm
  • B: Boiler height = 700mm
  • C: Boiler depth = 285mm
  • D: Side clearance = 2.5mm
  • E: Upper clearance = 178mm
  • F: Lower clearance = 150mm
  • G: Front clearance = 5mm in operation (450mm for servicing)

      • Technical Specification

      Product model 15 System 18 System 24 System
      7798687 7802020 7802241
      Gas
      Natural Gas or LPG Yes Yes Yes
      Inlet supply pressure (natural gas) mbar(nominal) 20 20 20
      Maximum gas rate (G20) Qmax (m3/hr) 1.64 1.97 2.61
      Heat input CHkW (max) gross (QnHs) 15.5 18.6 24.7
      Heat input CHkW (min) gross (QnHs) 4.9 4.9 4.9
      Heat output CH (non-condensing) - kW (max) (Pn) 15 18 24
      Heat output CH (non-condensing) - kW (min) (Pn) 4.8 4.8 4.8
      Heat output CH (condensing) - kW (max) (Pnc) 16.3 19.9 26.3
      Heat output CH (condensing) - kW (min) (Pnc) 5.2 5.2 5.2
      Heat input domestic hot water (DHW) - kW (max) gross (QnwHs) n/a n/a n/a
      Heat input domestic hot water (DHW) - kW (max) n/a n/a n/a
      Water heating efficiency class A A A
      Electrical
      Permanent live required Yes Yes Yes
      Pump overrun Yes Yes Yes
      Integral 'boiler only' frost thermostat Yes Yes Yes
      Hydraulic
      Maximum DHW flow rate (Delta T @ 35c rise) (I/min) n/a n/a n/a
      Minimum DHW flow rate required (I/min) 2 2 2
      Minimum operating DHW pressure required (bar) 0.5 0.5 0.5
      Integral expansion vessel (litres) 7 7 7
      Maximum capacity of CH system (litres) 100 100 100
      Weights
      Installer lift weight (boiler) (kg) 28 29 30
View full details
