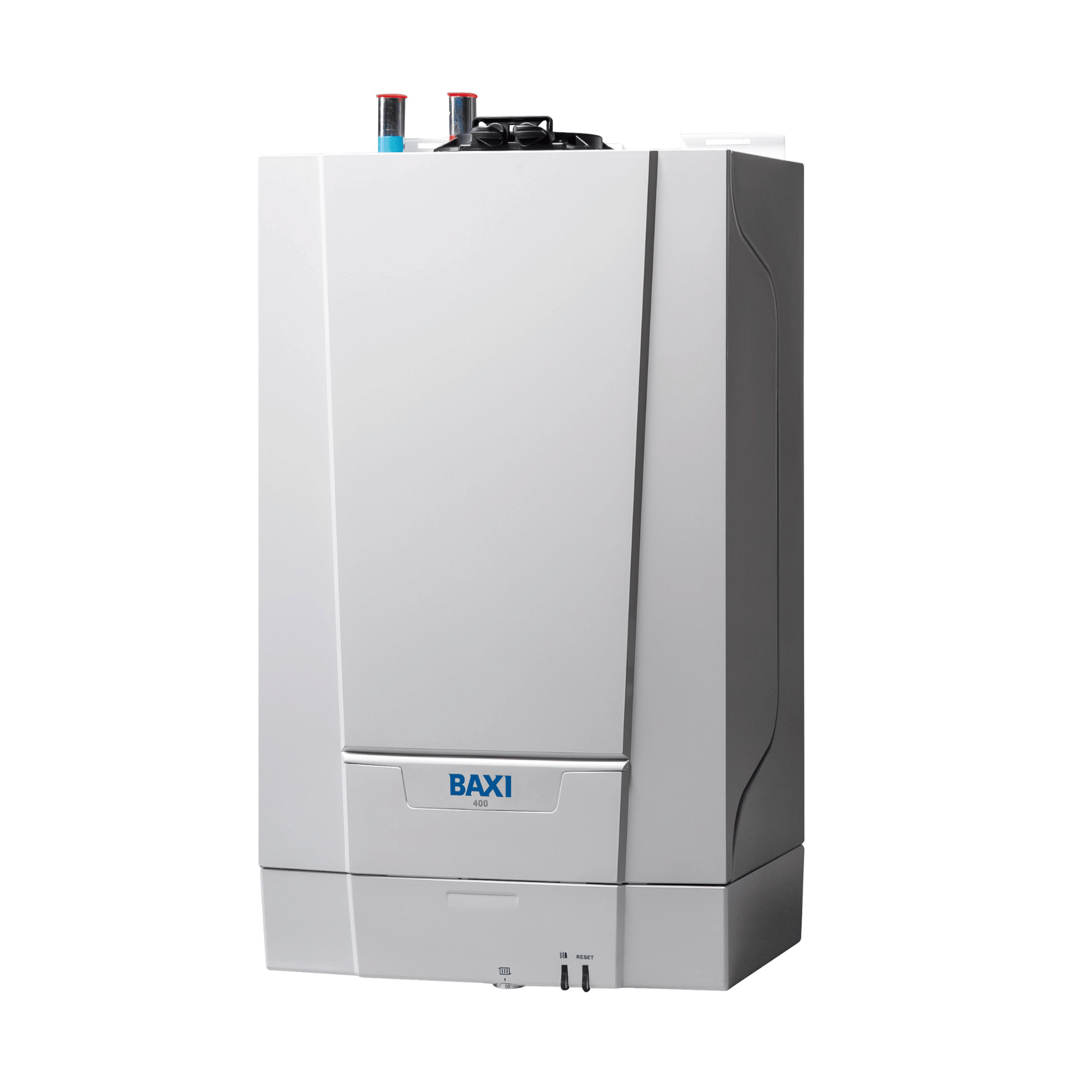

Baxi 418 Heat - Heat Only Boiler - 7668934
Baxi 418 Heat - Heat Only Boiler - 7668934
- Lead Time: In stock, ready for next day delivery*
Regular price
£886.32
Regular price
Sale price
£886.32
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Baxi 400 Heat
The Baxi 400 Heat has the option of a top or rear flue, making it an easy replacement for old standard efficiency boilers.
Baxi 400 Heat User Guide Baxi 400 Heat Installation & Service ManualWarranty
5-year parts and labour warranty for peace of mind†
Compact size
Lightweight and compact cupboard fit
Neater finish
Rear flue option for an even neater finish
Compatible
Compatible with market-leading Megaflo Eco cylinder
Dimensions
- A: Boiler width = 370mm
- B: Boiler height = 625mm
- C: Boiler depth = 270mm
- D: Side clearance = 5mm
- E: Upper clearance = 190mm
- F: Lower clearance = 120mm
- G: Front clearance = 5mm in operation (500mm for servicing)
Technical Specification
| Product Model | 15kW | 18kW | 24kW | |
|---|---|---|---|---|
| Product Code | 7668933 | 7668934 | 7668935 | 7668936 |
| Controls | ||||
| Operating mode selector switch with reset (Yes/No) | Yes | Yes | Yes | Yes |
| User adjustable CH temperature -Range - e.g. 30ºC to 80ºC (+/- 5ºC) | Yes | Yes | Yes | Yes |
| LED status/fault diagnosis display (Yes/nNo) | Yes | Yes | Yes | Yes |
| Gas | ||||
| SAP 2009 Annual Efficiency (PCDB/SEDBUK) % | 89.2 | 89.2 | 89.1 | 89.1 |
| NOx class (1-5) | 5 | 5 | 5 | 6 |
| ErP Product Information | ||||
| NOx (mg/kWh) | 20 | 21 | 23 | 21 |
| Sound Power Level, Indoors (LWA dB) | 33 | 34 | 35 | 49 |
| Space Heating Efficiency Class | A | A | A | A |
| Heat Input CH -kW max gross (QnHs) | 18.32 | 21.75 | 28.62 | 34.35 |
| Heat Input CH - kW min gross (QnHs) | 8.59 | 8.59 | 8.59 | 8.59 |
| Heat Output CH (non condensing) - kW max (Pn) | 16 | 19 | 25 | 30 |
| Heat Output CH (non condensing) - kW min (Pn) | 7.5 | 7.5 | 7.5 | 10.1 |
| Gas supply pipe size (mm) | 22 | 22 | 22 | 22 |
| Inlet supply pressure (natural gas) - mbar | 20 | 20 | 20 | 20 |
| Maximum gas rate (m3/hr) | 1.75 | 2.07 | 2.73 | 3.27 |
| Mechanical and hydraulic | ||||
| Compartment ventilation required | No | No | No | No |
| Flow / return pipe size (mm) | 22 | 22 | 22 | 22 |
| Condensate discharge pipe (mm) | 21.5 | 21.5 | 21.5 | 21.5 |
| Electrical | ||||
| Electrical supply - Volts/Hz | 230V/50Hz | 230V/50Hz | 230V/ 50Hz | 230V/ 50Hz |
| Permanent live required (Yes/No) | No | No | No | No |
| Switched live (Yes/No) | Yes | Yes | Yes | Yes |
| Electrical power cable fitted as standard (1m of 3 core) | Yes | Yes | Yes | Yes |
| Power consumption (Watts) | 20 | 23 | 33 | 44 |
| External fuse rating (Amps)3 | 3 | 3 | 3 | |
| Internal fuse rating | 1.6T | 1.6T | 1.6T | 1.6T |
| Boiler IP rating (electrical protection) -Approval category | IPX4D | IPX4D | IPX4D | IPX4D |
| Pump overrun (Yes/No) | No | No | No | No |
| Concentric flue system | ||||
| Standard telescopic concentric flue (Length in mm) | 315-500 | 315-500 | 315-500 | 315-500 |
| Standard in-case rear telescopic concentric flue (Length in mm) | 220-345 | 220-345 | 220-345 | 220-345 |
| Horizontal concentric (60/100mm) - Max equivalent length (m) | 6 | 6 | 6 | 6 |
| Horizontal concentric (60/100mm) - Reduction per 135º bend (m) | 0.5 | 0.5 | 0.5 | 0.5 |
| Horizontal concentric (60/100mm) - Reduction per 93º bend (m) | 1 | 1 | 1 | 1 |
| Weight | ||||
| Installer lift weight -Max (kg) | 17.4 | 17.4 | 17.4 | 19.5 |
| Gross packaged boiler weight (kg) | 21.5 | 21.5 | 21.5 | 21.5 |
