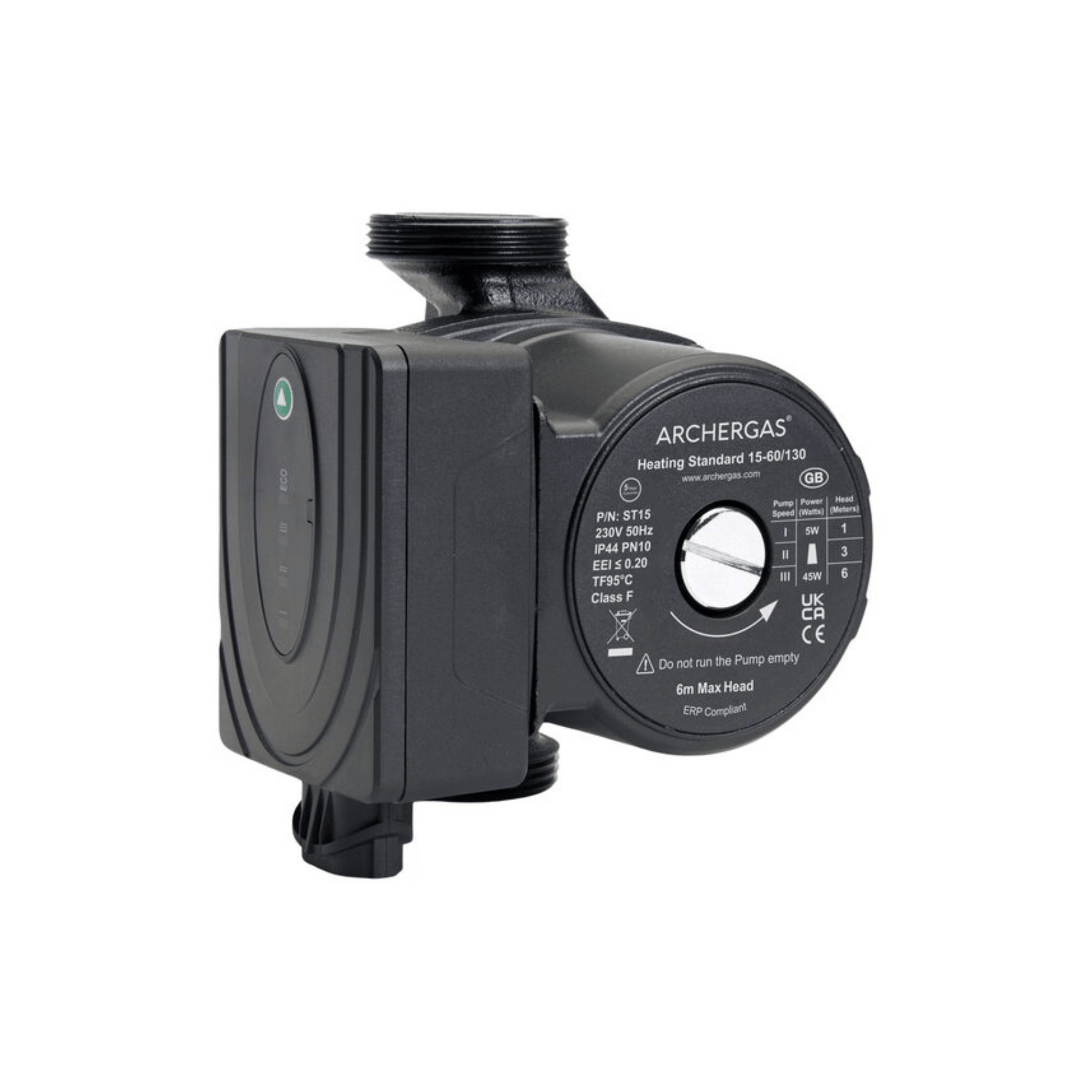

Archergas Standard Heating Pump - 15-60/130 - ST15
Archergas Standard Heating Pump - 15-60/130 - ST15
- Lead Time: Direct from our Supplier, Usually Next Working Day*
Couldn't load pickup availability
UK Registered Design Certificate
EU Registered Design Certificate
UK Registered Trademark Certificate
The Archergas® Heating Standard produces a maximum head of just over 6 meters with a standard 1 1/2" threaded connection. As with all Archergas® circulators, it is fully ERP compliant with an impressive energy efficiency index rating of less than 0.20. The ST15 is a standalone heating circulator with 4 modes of control and a standard 130mm port to port size. The ST15® is suitable for radiators, underfloor heating, cooling, solar, recirculation (non-potable) and air source heat pump systems. Due to our quality focused approach to manufacturing and our use of high end component materials, this circulator is resistant to condensation, corrosion, high pressure and high temperatures. It also comes with a 5 year guarantee and can be used as a direct replacement for a large number of other models, some of which are listed below:
Replaces:
Make | Model
- Grundfos | UP, UPS 4m, 5m, 6m, UPSD, UPS2, UPM3 & UPS3
- Lowara | Ecocirc, Ecocirc Basic & Premium 25-40 & 25-6 (130)
- Wilo | Yonos Pico 15/1-6-130, Gold, Gold Star, Gold 50, 60 & RS25
- Embrass Peerless | Eclipse CFA 25-50 & 60-130
- DAB | VA55/130, VA65/130, Evotron 60/130, Evosta 40/70
- Circulating Pumps | CP50, CP60 & Myson LA, SD, CP53 & CP63
- BritTherm | P1 25-6/130 & Domestic Pro 15-60/130
- Salus | MP100A & MP200A
- Boiler M8 | RS25/6G-130, RS25/6EAR-130, GPA25-6 II AC & GPD25-6S-130
- Stuart Turner | ST 15/60 (130)
- Antares | Type S40 to S60, Alfamax RS & AS 15/40 to RS & AS 25/60 (130)
- Pegler | Terrier TC5 & TC6
- Circulating Pumps (Myson) | CP50, CP60 & Myson LA, SD, CP53 & CP63
- Flomasta | 25-5-130 & 25-6-130
- Smiths | ES2 25-60/130
- IBO | OHI, BETA, MAGI & NOVA 25-60/130
- SMC | Cadet, Commodore & Comet 130
- Katsu | 151711
- Ferro | GPA 25-6 II
- Euramo | MXL 130, D, Gold, Solid Gold, Goldstar
- Arcus | 356R & 136EA
- Jass Ferry | KBD20-6S-130 & KBD25-6S-130
- Primaflow | CP5, CP6, CPE6 & HE-6
- Tucson | GPD25-5S & RS256EA
- CBS | CBS 60 & CBS Intel 15-60/130
- Adlink | Type 15-60/130 & 25-60/130
- Anchor Pumps | Desgee AC 15-130
- Bacoeng | DN40-6G
- Trident | WPB 25-6
- WSTN | WRS 25-60/130
- FHS | LPS40-6S/130
- Tower | APUMP+
Specification:
Part Number: ST15
Connection Size: 1 ½”
Port to Port Distance: 130mm
Maximum Head: 6 Meters
Maximum Flow Rate: 65 Litres Per Minute
Maximum System Pressure: 10 Bar
Energy Efficiency Index Rating (EEI): ≤ 0.20
Speed Control: 4 Modes
CE/UKCA Approved: Yes
Protection Class: IP44
Temperature Class: TF95ºC
Insulation Class: F
Supplied With: Rubber Washers x2 & Quick Connect Adaptor x1
Material: Cast Iron
Colour: Jet Black
Weight: 2.0kg
The benchmark for the most efficient circulators is EEI ≤ 0.20
T15® is a registered trademark owned by Archergas Limited
This standalone circulator is not for head changes or use inside boilers
