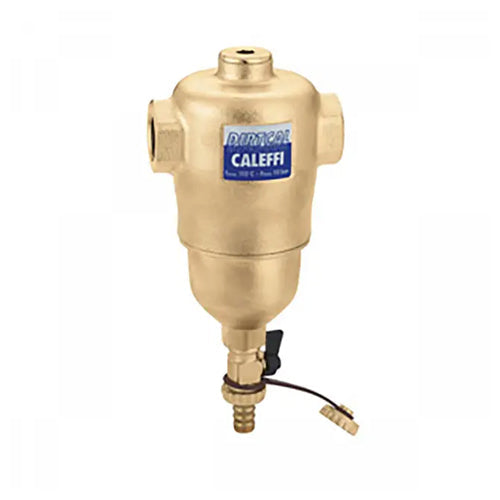

Altecnic Series 546 DirtCal Brass Dirt Separator - 1 1/2" Female x Female - 546208

Description

In heating and chilled water systems the circulating water will undoubtedly contain debris which entered the pipework during site storage and construction. The debris may consist of pipe scale, thread turnings, rust particles, thread sealing tape or jointing paste and air borne dust particles. If left within the pipework this debris may cause erosion to bends and fittings, and cause damage to pumps and control valves. Modern systems contain many small control valves in which the seats could become damaged or blocked, these types of valve require a clean system to work efficiently. DirtCal dirt separators are an efficient way of removing debris and are capable of removing small particles down to 5µm (microns) in size. Debris is collected in the large chamber allowing longer periods between cleaning, which can be done whilst the system is operating. DirtCal separators, if cleaned regularly, have a low pressure loss characteristic, important for reducing energy demands and on-going running costs.

Features & Benefits

• 1 1/2" Female x Female - Series 546 DirtCal Brass Dirt Separator - 546208
• Suitable for heating and chilled water systems
• Efficient separation of particles down to 5µm (microns) in size
• Low pressure loss
• Large dirt collection chamber
• Suitable for horizontal pipework
• 1 1/2" Female threaded connections
• Manufactured from brass with stainless steel internal element
• Hose union ball blowdown valve
• Top connection 1/2" female threaded with blanking plug
