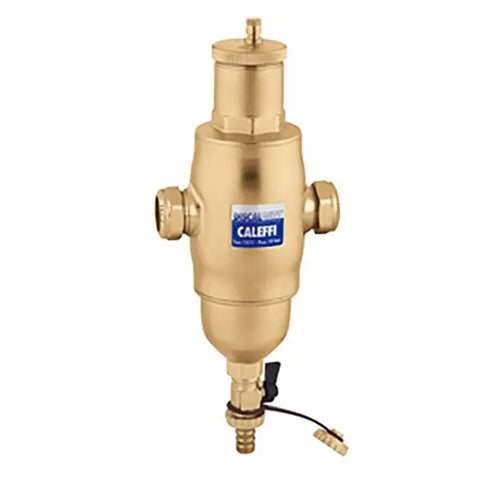

Altecnic Series 546 Commercial Discal Dirt and Air Separator - 22mm Compression - 546002

Description

The Discal air and dirt separator is manufactured from brass with an internal element and automatic air vent. It is used to continuously remove debris and air contained in the hydraulic circuits of heating and cooling systems. They are capable of automatically removing all the air present in the system down to micro-bubble level, with very low head losses. The large air collection chamber is able to accommodate a large volume of air before being released automatically. At the same time they separate debris and impurities contained in the system which collect in the lower part of the collection chamber from which they may be expelled via the blow down valve. The circulation of fully de-aerated water enables equipment to operate under optimum conditions, free from any noise, corrosion, localised overheating or mechanical damage, important for reducing energy demands and on-going running costs.

Features & Benefits

• 22mm Comp - Series 546 Commercial Discal Dirt and Air Separator - 546002
• Dirt and air separator for commercial applications to de-aerate water in a system
• Superior separation compared to conventional 'Y' strainers, with minimal pressure loss
• Capable of removing air down to the micro bubble level
• Large air collection chamber allows accommodation of large air volumes
• Allows removal of dirt and impurities in the water
• Helps reduce energy demands and running costs
• Includes 1/2" drain connection with ball valve and blanking cap
• Suitable for both heating and cooling systems
• 22mm compression x compression connections for horizontal piping
