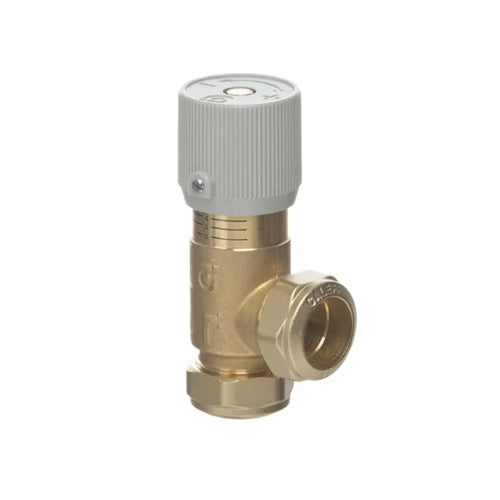

Altecnic Series 519 Ecopas Full Flow Differential Bypass Valve - 3/4" Female x Male Union - 519500

Description

The Series 519 differential bypass valve uses a stainless steel compression spring to exert a pre-determined force onto the disc. The force is adjustable by turning the control knob to set the required differential pressure between 1 to 6 m head which corresponds to 10 to 60 kPa. The setting is then locked using the locking screw on the side of the control knob to prevent unauthorised adjustment.

Features & Benefits

• 3/4" Female x Male Union - Series 519 Ecopas Full Flow Differential Bypass Valve - 519500
• Differential bypass valve for use on heating systems where control is by zone or thermostatic radiator valves
• Fitted between flow and return permitting circulation through boiler and helps prevent unnecessary cycling of boiler
• Used in a system with variable flow rates
• Simple to install, with only two joints to fix
• Can be fitted in any orientation
• 3/4" Female x Male Union threaded connections
