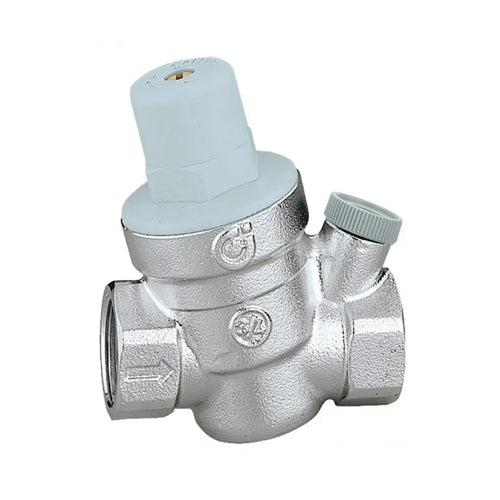

Altecnic Prescal Series 533 Pressure Reducing Valve with Gauge Port - 1/2" FBSP x 1/2" FBSP - 533441

Description

The 533 series is specially designed for hot and cold services in houses or apartments to equalise the hot or cold water supplies or both and prevent excessive pressure at outlets such as taps and showers. They have a specially shaped diaphragm to give accurate pressure regulation in response to changes in downstream pressure. The larger outlet chamber creates a low exit velocity which is effective in reducing water noise. The control stem housing of the cartridge is made from a plastic material with a low co-efficient of adhesion, which reduces the probability of scale deposits forming, the main cause of pressure reducing valve malfunction.

Features & Benefits

• Includes gauge port
• Suitable for hot and cold services
• Pressure setting range: 1 to 6 Bar
• Accurate pressure regulation
• Low exit velocity reduces water noise
• Features reduced scale formations
• Cartridge and strainer can be easily removed to be cleaned
• 1/2" FBSP x 1/2" FBSP connections
• Chrome plated brass body
• WRAS Approved
