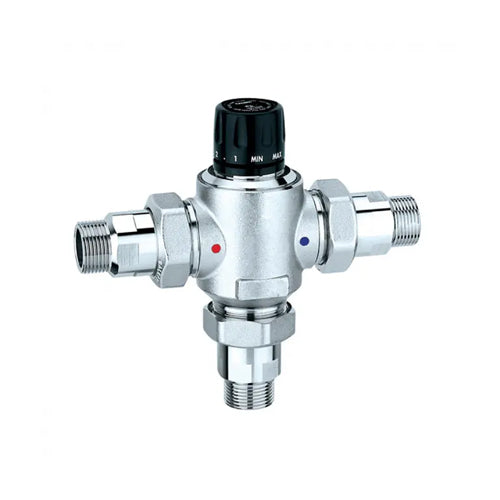

Altecnic MixCal MixPro Art 5230 - Thermostatic Mixing Valve - 3/4" MBSP - 523053
Altecnic MixCal MixPro Art 5230 - Thermostatic Mixing Valve - 3/4" MBSP - 523053
- Lead Time: 1-7 Working Days*
Regular price
£872.38
Regular price
Sale price
£872.38
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Thermostatic mixing valves are used to maintain the domestic hot water supplied to the user at a constant and safe temperature, when variations in the hot and cold water supply conditions and draw off flow rates occur. The Mixcal MixPro® range has been designed especially for centralised systems which demand high flow rates, for example with multiple outlets such as shower and wash basins.
Features & Benefits
- 3/4" MBSP - MixCal MixPro Art 5230 - Thermostatic Mixing Valve with Check Valves - 523053
- Thermostatic mixing valve for centralised systems with high flow rates
- Includes check valve integrated tail pieces
- Designed for multiple outlets such as showers, basins
- Temperature range of 30°C to 65°C
- Male 3/4" screwed connections
- Chrome plated brass body
- WRAS approved
Specification
- 3/4" MBSP x 3/4" MBSP x 3/4" MBSP Screwed Iron Connections
- Max. working pressure: 14 bar (Static)/5 bar (Dynamic)
- Max. inlet temperature: 85°C
- Max. inlet pressure ratio (H/C or C/H): 2:1
- Accuracy: ±2°C
- Setting Range: 30°C to 65°C
- Male threads: BS EN ISO 228-1
