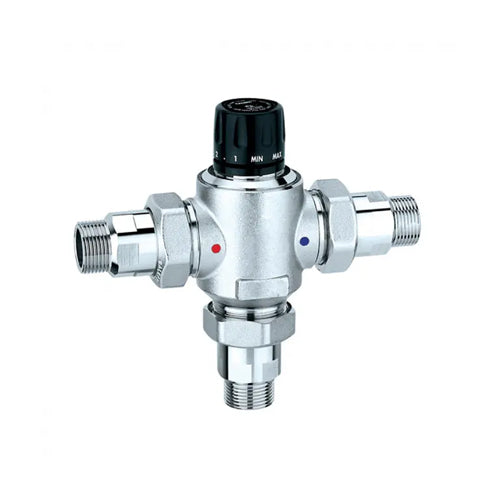

Altecnic MixCal MixPro Art 5230 - Thermostatic Mixing Valve - 2" MBSP - 523090
Altecnic MixCal MixPro Art 5230 - Thermostatic Mixing Valve - 2" MBSP - 523090
Shipping calculated at checkout.
Couldn't load pickup availability
Approx. Lead Time: 3 Working Days
Description
Thermostatic mixing valves are used to maintain the domestic hot water supplied to the user at a constant and safe temperature, when variations in the hot and cold water supply conditions and draw off flow rates occur. The Mixcal MixPro® range has been designed especially for centralised systems which demand high flow rates, for example with multiple outlets such as shower and wash basins.
Features & Benefits
- 2" MBSP - MixCal MixPro Art 5230 - Thermostatic Mixing Valve - 523090
- Thermostatic mixing valve for centralised systems with high flow rates
- Designed for multiple outlets such as showers, basins
- Temperature range of 30°C to 65°C
- Male 2" screwed connections
- Chrome plated brass body
- WRAS approved
Specification
- 2" MBSP x 2" MBSP x 2" MBSP Screwed Iron Connections
- Max. working pressure: 14 bar (Static)/5 bar (Dynamic)
- Max. inlet temperature: 85°C
- Max. inlet pressure ratio (H/C or C/H): 2:1
- Accuracy: ±2°C
- Setting Range: 30°C to 65°C
- Male threads: BS EN ISO 228-1
