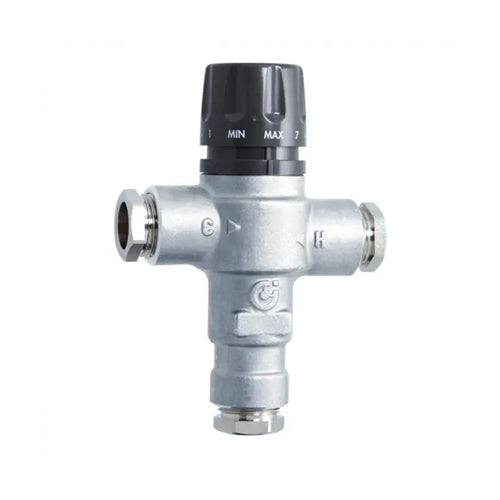

Altecnic MixCal Art 5219 - TMV2 Thermostatic Mixing Valve - 15mm - 521931CST
Altecnic MixCal Art 5219 - TMV2 Thermostatic Mixing Valve - 15mm - 521931CST
Couldn't load pickup availability
Approx. Lead Time: 3 Working Days
Description
The Mixcal 5219 thermostatic mixing valves are designed to provide hot water at a selected constant temperature. This is used when variations in the hot and cold water supply conditions and draw off flow rates occur. The Altecnic 5219 mixing valves are primarily used for single outlet use and as it delivers mixed hot water to taps, showers, baths and bidets it is ideal for use in domestic and commercial hot water systems. The thermostatic mixing valves are controlled by a temperature sensor which is fully immersed in the mixed water outlet port, which expands or contracts, continually maintaining the correct proportion of hot and cold water entering the valve.
Features & Benefits
- TMV2 thermostatic mixing valve for domestic hot water systems
- Designed primarily for single outlet use
- Ideal for use for baths, showers, basins and bidets
- Fail safe shuts off flow in event of disruption
- Easy to install
- Requires minimum maintenance
- Suitable for exposed installations due to its robust construction
Specification
- Connection: 15mm G 1/2"
- Max. working pressure: 10 bar - Static
- Max. inlet temperature: 85°C
- Max. inlet pressure ratio (H/C or C/H): 2:1
- Accuracy: ±2°C
- Min. temperature difference between inlet hot water and outlet mixed
- Setting range: 30 to 65°C
- Complies with: BS EN 1287:1999
