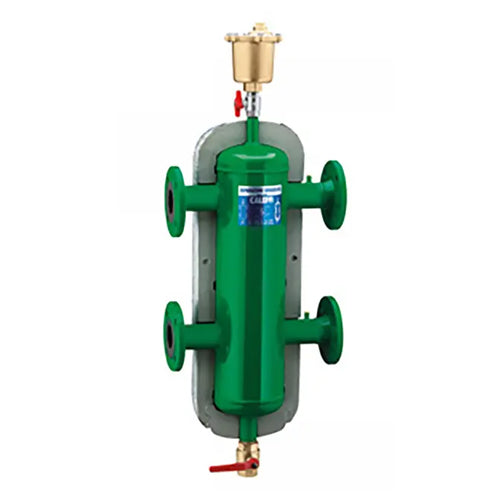

Altecnic Hydraulic Air and Dirt Separator - DN80 Flange x Flange - 548082

Description

The 548 Hydraulic Separator combines several different components, each of which performs a specific function, typical of the circuits used in heating and air-conditions systems. The Hydraulic Separator component performs similar to a Low Loss Header keeping the primary and secondary circuits connected hydraulically yet able to function totally independently from each other. The Dirt Remover component allows the separation and collection of any impurities present in the circuits. The 548 Hydraulic Separator is provided with a blow down valve for easy debris removal. The Automatic Air Vent element is for automatic venting of any air contained in the circuits. A check valve is provided for maintenance purposes. The threaded and flanged separators, up to DN 150, are supplied complete with a pre-formed insulation shell to ensure perfect thermal insulation when used in both hot and cold water systems.

Features & Benefits

• DN80 Flange - Hydraulic Separator - Dirt and Air - 548082
• DN80 Flange x Flange PN16 Connection for coupling with Counter Flanges EN-1092-1
• Combines hydraulic separator and dirt separator with blow-down valve, automatic air vent with check valve and insulation (pre-formed)
• Body Material: Epoxy resin coated steel body
• Medium: water and non-hazardous glycol solutions excluded from the guidelines of EC directive 67/548
• Max. percentage of glycol: 50%
• Max. working pressure: 10 bar
• Max. operating temperature: -10°C - 110°C
• Height: 1279mm
• Width: 526mm
• Weight: 51kg
