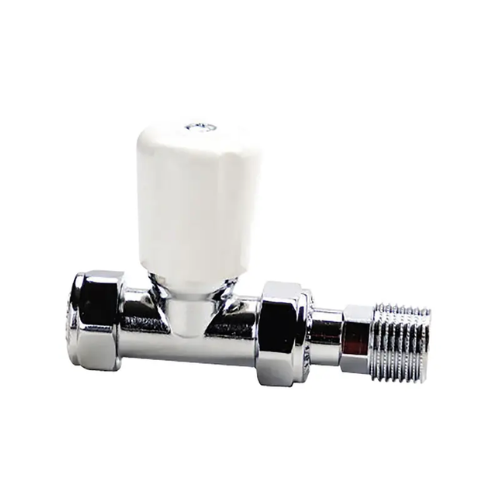

Altecnic Eclipse Manual Radiator Valve - Straight - 10mm x 1/2" - CA-406410

Altecnic Eclipse Manual Radiator Valve - Straight - 10mm x 1/2" - CA-406410

Description

The Altecnic eclipse manual radiator valves provide manual regulation and isolation to radiators and other heat emitters on heating systems. The valves are suitable for use as either a wheel-head or lock-shield valve simply by changing the hand-wheel to the lock-shield cover, both of which are supplied. The hand-wheel and lock-shield cover are secured by a retaining screw minimising the possibility of accidental removal, which would expose the potentially dangerous valve stem. The valves are of compact design with non-rising valve stems and have a serviceable gland, should maintenance be required in the future. Their aesthetic design satisfies the requirements of modern commercial buildings and domestic interiors. Chrome plated bodies with white hand-wheels and lock-shield covers give an unobtrusive appearance and complement most decors.

Features & Benefits

• 10mm - Eclipse Straight Manual Radiator Valve with Wheel Head & Lock-shield Cap - CA-406410
• Straight manual radiator valve for regulation and isolation to radiators and other heat emitters
• Suitable for use as both a wheel handle or lock-shield valve
• Changeable cover achieves this flexibility
• Cover secured by retaining screw to prevent accidental removal
• Compact design and serviceable gland
• Aesthetically pleasing chrome design
• Also available with chrome hand-wheel and lock-shield cover
• 10mm copper compression connections

Specification

• Valves comply with: BS 2767
• Max. working pressure (static): 10 Bar
• Max. temperature: 100°C
• Medium: water, glycol solution
• Max percentage of glycol: 30%
