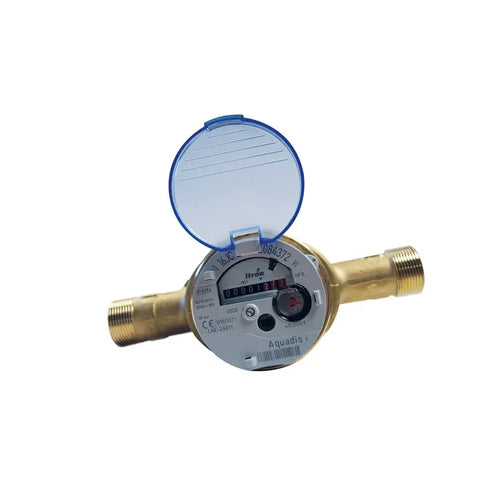

Altecnic Aquadis+ Pulsed Cold Water Meter - 1 Litres/Pulse - 1" MBSP x MBSP - PS-P00003

Description

The Altecnic Aquadis+ range of pulsed water meters for cold water applications offers a dependable and accurate reading of water consumption and is ideally suited for use in domestic premises and small commercial buildings. It comes complete with a hermetically sealed IP68 copper can mineral glass register as standard (TVM) however a plastic TSN register with wiper for high humidity conditions is available upon request. The pulse read out system is factory fitted and allows a pulse rating of 1 pulse/litre or 1 pulse/10 litres to be emitted. The emitted pulse can be read by various types of remote output readers.

Features & Benefits

• 1" MBSP x MBSP - Altecnic Aquadis+ Cold Pulsed Water Meter with Copper Can Mineral Glass Register - 1 Litres/Pulse - PS-P00003
• 1" MBSP x 1" MBSP Screwed Iron Connections
• Pulsed Cold Volumetric Water Meter
• Comes complete with a copper can mineral glass register
• Glass register made to IP68 and is hermetically sealed to face all site situations
• A plastic register for high humidity conditions is available upon request
• Combines piston type technology together with extra dry registers
• Advantages of piston type with proven reliability of dry registers
• Provides a hermetical measuring element using the concept of magnetic transmission
• Very low starting flow allows for leakage detection
• Large measuring range
• Maximum admissible working pressure: 16 Bar
• Easy reading dial has large numbered rollers with high contrast
• Reading dial can be rotated through 360°C in any position
• Pre-equipped for future communication through Cyble Target allowing remote reading from either a pulse output, M-Bus protocol or radio frequency wireless link
• NOTE: Pulse Value and Cable length must be specified when ordering
