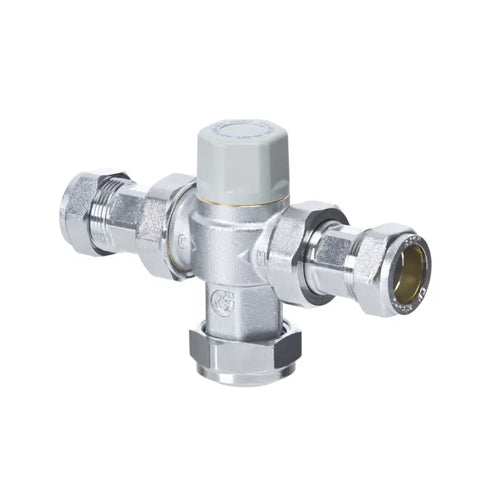

Altecnic 5213 Merchant TMV2/3 Thermostatic Mixing Valve - 22mm - CA-100824
Altecnic 5213 Merchant TMV2/3 Thermostatic Mixing Valve - 22mm - CA-100824
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The merchant range of failsafe thermostatic mixing valves have been designed and manufactured to meet the requirements of BS 7942:2000 and the National Health Service model engineering specification D08 for use in healthcare premises, hospitals, care homes, and schools. The valve has been independently tested and approved as a type 3 valve under the TMV3 scheme.
Features & Benefits
- TMV2 and TMV3 approved thermostatic mixing valve
- For use in healthcare premises, hospitals, care homes and schools
- Can also be used in domestic and commercial buildings
- Suitable for single and multiple outlets
- 22mm compression connections
- Chrome plated
- TMV2 and TMV3 Approved
- WRAS Approved
Specification
- Max. working pressure: 10 bar (Static)
- Min. working temperature: 0.2 Bar (Dynamic)
- Max. inlet temperature: 85°C
- Inlet temperature range - hot supply: 52 - 65°C
- Inlet temperature range - cold supply: 0.5 - 20°C
- Max. inlet pressure ratio (H/C or C/H): 5:1
- Accuracy: ±2°C
- Setting Range: 30 to 50°C
- Min. flow for stable operation 4 l/m
