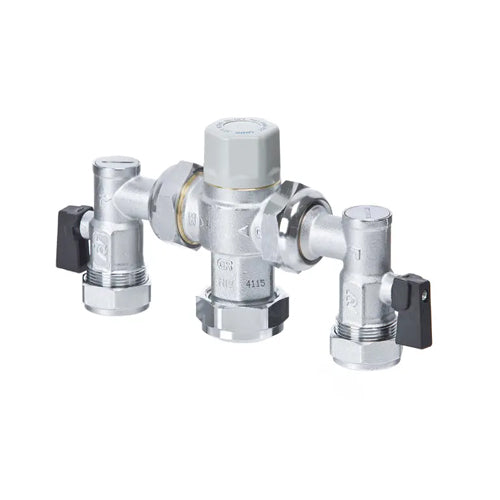

Altecnic 5213 Merchant TMV2/3 Thermostatic Mixing Valve - 15mm - CA-100827

Description

The merchant range of failsafe thermostatic mixing valves have been designed and manufactured to meet the requirements of BS 7942:2000 and the National Health Service model engineering specification D08 for use in healthcare premises, hospitals, care homes, and schools. The valve has been independently tested and approved as a type 3 valve under the TMV3 scheme.

Features & Benefits

• Includes Intaball MX valves complete with isolator valve, check valve and test port
• TMV2 and TMV3 approved thermostatic mixing valve
• For use in healthcare premises, hospitals, care homes and schools
• Suitable for domestic and commercial buildings
• Suitable for single and multiple outlets
• Chrome plated

Specification

• Connections: 15mm Compression Connections
• Max. Working Pressure: 10 Bar
• Min. Working Temperature: 0.2 Bar (Dynamic)
• Max. Inlet Temperature: 85°C
• Inlet Temperature Range (Hot Supply): 52 - 65°C
• Inlet Temperature Range (Old Supply): 0.2 - 20°C

• Max. Inlet Pressure Ratio (H/C or C/H): 5:1

• Accuracy: ±2°C
• Setting Range: 30 - 50°C
• Min. Flow For Stable Operation: 4 l/m
• Certifications: TMV2 and TMV3 Approved, WRAS Approved
