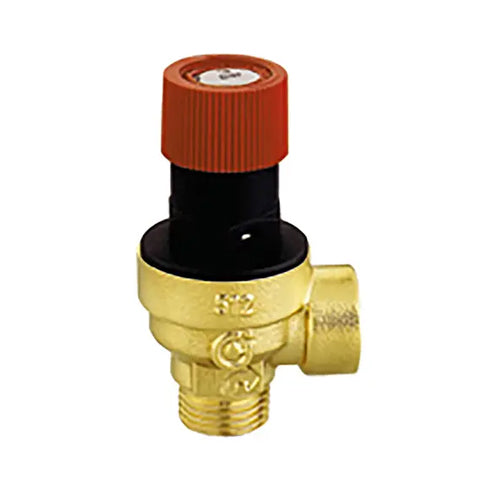

Altecnic 514 Series Safety Pressure Relief Valve - 6 Bar - 1/2" M x F - 514460
Altecnic 514 Series Safety Pressure Relief Valve - 6 Bar - 1/2" M x F - 514460
- Lead Time: 1-7 Working Days*
Couldn't load pickup availability
Description
The Altecnic series 514 safety relief valves are used in large domestic hot water systems to protect the hot water cylinder and in heating systems to protect the boiler and other components. The valve is selected for the required set pressure. As the pressure rises, when the discharge pressure is reached the valve opens and discharges to the atmosphere, preventing the pressure within the system reaching levels which would be dangerous for the boiler, hot water storage cylinder and any personnel in the adjacent vicinity.
Features & Benefits
- Designed to be used in large domestic hot water and heating systems
- Protects hot water cylinders and heating components
- Set pressure: 6 Bar
- 1/2" male to 1/2" female threaded connections
- Suitable for water (potable or not) and air
- Stainless steel spring
- WRAS Approved product
- Granted CE Mark
Specification
- Bar Pressure: 6.0 Bar
- Connection: 1/2" MBSP x 1/2" FBSP
- Series: 514 Large
- Medium: water and air
- Temperature range: 5 to 110°C
- Max. static pressure: 10 Bar
- PED category: IV
- WRAS Approved
*Stock dependant
