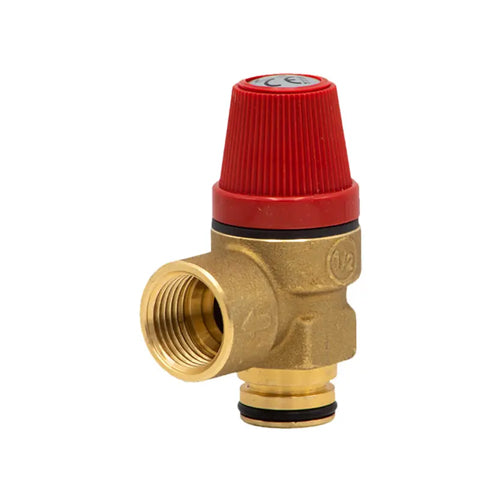

Altecnic 312 Series Safety Pressure Relief Valve - 3 Bar - 1/2" F x Pushfit O-Ring - 312404CST
Altecnic 312 Series Safety Pressure Relief Valve - 3 Bar - 1/2" F x Pushfit O-Ring - 312404CST
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The Series 312 safety relief valves are used in domestic hot water systems to protect the hot water cylinder and in heating systems to protect the boiler and other components. The valve is selected for the required set pressure. As the pressure rises, when the discharge pressure is reached the valve opens and discharges to the atmosphere, preventing the pressure within the system reaching levels which would be dangerous for the boiler, hot water storage cylinder and any personnel in the adjacent vicinity.
Features & Benefits
- Designed to be used in domestic hot water and heating systems
- Protects hot water cylinders and heating components
- Set pressure: 3.0 Bar
- 1/2" pushfit to female threaded connections
- Suitable for water (potable or not) and air
- Stainless steel spring
- WRAS Approved product
- Granted CE Mark
Specification
- Bar Pressure: 3 Bar
- Connection: 1/2" FBSP x 1/2” Pushfit
- Series: 312
- Medium: water and air
- Temperature range: 5 to 110°C
- Set pressure: 3 Bar
- Max. static pressure: 10 Bar
- PED category: IV
