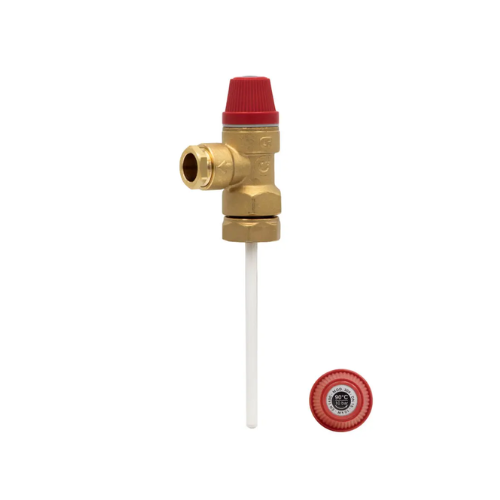

Altecnic 309 Series Pressure & Temperature Relief Valve - 10 Bar - 3/4" Loose Nut - 309508CST

Description

The Altecnic 309 temperature pressure relief valves are used to control and limit the temperature and pressure of hot water contained in a domestic storage cylinder, preventing the water from reaching 100°C. When the set conditions are reached, the valve discharges a sufficient amount of water to allow the temperature or pressure to return within the system's operating limits. The valves have been designed for use on unvented hot water systems.

Features & Benefits

• Pressure and temperature relief valves for unvented hot water systems
• 203mm Probe
• 309 Range
• WRAS approved

Specification

• Probe Length: 203mm
• Connection: 3/4"
• Discharge Rating: 10kW
• Factory Set Pressure: 10 Bar
• Factory Set Temperature: 90°C
• PED Category: IV
• Product Code: 309508CST
