Adey MagnaClean TwinTech - 22mm - MCTT001

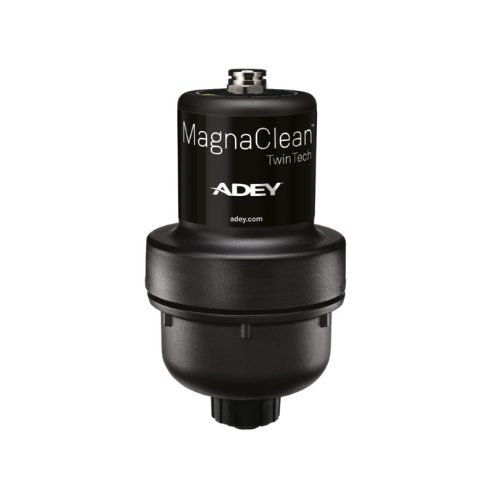

MagnaClean TwinTech is a powerful dual-action filter capturing magnetic and non-magnetic debris as well as biological films. Specifically designed for use with underfloor heating systems.

MagnaClean TwinTech delivers protection against the damaging effects of black iron oxide sludge and non-magnetic debris. The dual combination of the high performance magnetic filter and advanced fine wire gauze eliminates both the magnetic sludge along with non-magnetic debris and biological films, making it ideal for use within underfloor systems.

Homeowner Benefits

• 6% annual saving on heating bills*
• Immediate ongoing system protection
• Extended system life
• Reduced carbon emissions

Installer Benefits

• Dual-action system protection
• Exceptional magnetic capture
• Stainless steel gauze for efficient biological film removal
• Ideal for use with underfloor heating systems
• One-way valve for simple chemical dosing
• Simple installation and servicing

Technical Specification

• Canister and lid
• Material: Glass fibre reinforced nylon
• Fluid capacity: 340 ml (chemical bowl)
• Inlet diameter: 22 mm at valve
• Outlet diameter: 22 mm at valve
• Thread: Pressure thread
• Flow configuration: : Flow must enter the bottom port and exit the top port
• Magnet
• Housing: Stainless steel
• Length: 150 mm
• Diameter: 25 mm
• Bleed valve
• Body material: Nickel plated brass
• Screw: Nickel plated brass
• Retainer: Nickel plated brass
• Ball: Stainless steel
• Spring: Stainless steel
• Outer hex: 22mm
• Triple seal valve
• Body material: Nickel plated brass
• Seals material: Long life PTFE ball seals
• O ring material: Nitrile 70
• Valve inlet/outlet: 22 mm
• Servicing Clearance
• Air vent (top): 50 mm
• Drain Plug (bottom): 95 mm
• Wire gauze
• Material: Stainless steel
• Diameter: Approximately 90 mm

Full installation instructions are supplied with each filter and are also available to download from adey.com
