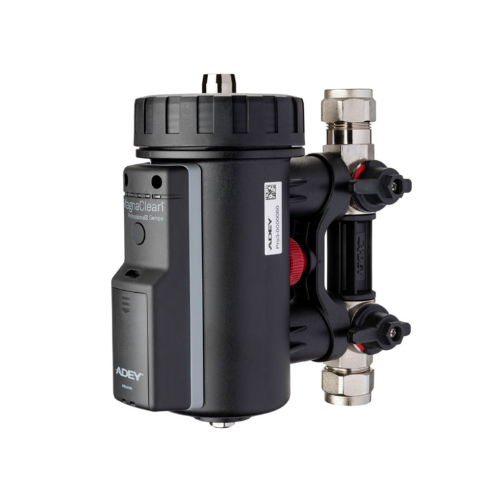

Adey MagnaClean Professional3 Sense - 22mm - FL1-03-03434

The revolutionary solution to monitor the health of central heating systems, reducing costly and time-consuming onsite visits. The MagnaClean Professional3 Sense® gives installers the power to predict heating system breakdowns before they occur and is a smart solution for delivering protective and preventative heating system maintenance.

The MagnaClean Professional3 Sense connects via Wi-Fi directly to a smartphone sending system performance alerts to the ADEY ProClub® App. The filter will regularly analyse the system and provide recommendations to help maintain system health. LED light functionality is also available on the canister indicating the level of magnetite capture.

Homeowner Benefits

• Costs savings – Can save up to 7% on annual heating bills. The filter ensures heating system is running efficiently and less likely to breakdown helping homeowners to budget*
• Reassurance - system is well maintained and less likely to fail
• Time-saving - installer can proactively contact homeowner and schedule appointments in advance

Installer Benefits

• Hallmark qualities of the MagnaClean Professional2® filter
• Provides an effective tool to establish a proactive relationship with customers
• Enables the possibility to offer an improved service and retaining existing customers
• Encourages homeowner to remain with the existing installer
• Provides independent validation of issue/ service requirement

Technical Specification

• Canister and lid
• Material: Glass reinforced nylon
• Fluid capacity: 550 ml
• Inlet diameter: 22 mm at valve
• Outlet diameter: 22 mm at valve
• Thread: Pressure thread
• Flow configuration: Bi-directional
• Main lid seal: EPDM
• Valve to canister: EPDM
• Magnet
• Housing: Stainless steel
• Length: 150 mm
• Diameter: 19 mm
• Bleed valve
• Body material: Nickel plated brass
• Screw: Nickel plated brass
• Thread interface: M6
• Seals: EPDM
• Drain port
• Drain plug material: Nickel plated brass
• Drain plug thread: M8
• Seals: EPDM
• Triple seal valves
• Body material: Nickel plated brass
• Seals material: Long life PTFE ball seals
• O ring material: EPDM 70 seals x3
• Valve inlet/outlet: 22 mm
• Servicing Clearance
• Air vent (top): 50 mm
• Drain Plug (bottom): 50 mm
• Electronic sub-assembly
• Enclosure rated to IP52 specification
• Battery powered: 2x AA alkaline batteries

Full installation instructions are supplied with each filter and are also available to download from adey.com

*Stock dependant
