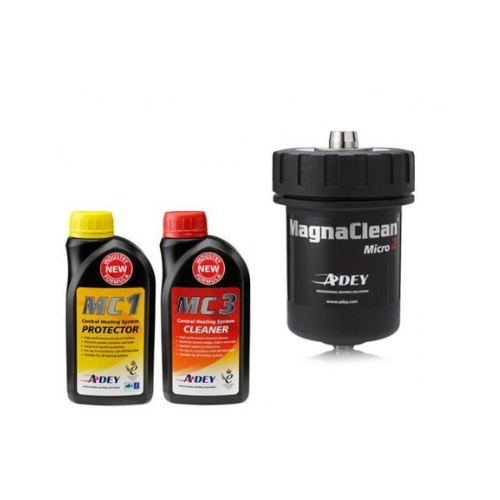

Adey MagnaClean Micro2 Filter with Chemical Pack - 22mm - FL1-03-01275
Adey MagnaClean Micro2 Filter with Chemical Pack - 22mm - FL1-03-01275
- Lead Time: 1-5 Working Days*
Regular price
£129.60
Regular price
Sale price
£129.60
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Compact in design, the MagnaClean Micro2 is a double action filter that targets the removal of magnetite in smaller central heating systems.
MagnaClean Micro2 delivers exceptional protection against the damaging effects of black iron oxide sludge and non-magnetic debris and is ideal for compact installations where space is limited.
Comes with chemicals
Homeowner Benefits
- 6% annual saving on heating bills*
- Immediate ongoing system protection
- Extended system life
- Reduced carbon emissions
Installer Benefits
- High performance compact filter making it ideal for tight spaces
- In-line installation can be completed in just two minutes
- 360° rotational valves providing multiple installation options
- Bi-directional flow so either port can be an inlet for increased flexibility
- Ultra-thin sheath to enhance magnetic capture performance
- Low profile drain valve designed for easier servicing and dosing
- Twin reverse flow that maximises debris capture
- Improved sheath design for dual nonmagnetic capture
- Rapid fit connectors for faster servicing
Technical Specification
- Canister and lid
- Material: Glass reinforced nylon
- Fluid capacity: 250 ml
- Inlet diameter: 22 mm at valve
- Outlet diameter: 22 mm at valve
- Thread: Pressure thread
- Flow configuration: Bi-directional
- Main lid seal: EPDM
- Valve to canister: EPDM
- Magnet
- Housing: Stainless steel
- Length: 97.5 mm
- Diameter: 19 mm
- Bleed valve
- Body material: Nickel plated brass
- Screw: Nickel plated brass
- Thread interface: M6
- Seals: EPDM
- Drain port
- Drain plug material: Nickel plated brass
- Drain plug thread: M8
- Seals: EPDM
- Triple seal valves
- Body material: Nickel plated brass
- Seals material: Long life PTFE ball seals
- O ring material: EPDM 70 seals x3
- Valve inlet/outlet: 22 mm
- Servicing Clearance
- Air vent (top): 50 mm
- Drain Plug (bottom): 50 mm
Full installation instructions are supplied with each filter and are also available to download from adey.com
