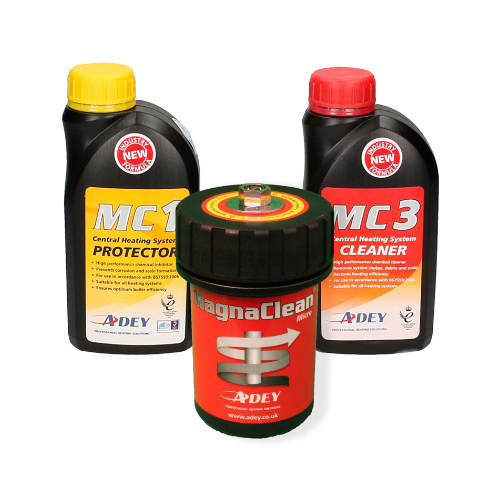

Adey MagnaClean® Micro Filter with Chemical Pack - 22mm - FL1-03-01867

The MagnaClean Micro has evolved.

MagnaClean Micro is designed for installers who want a compact filter that's reliable and easy to install.

The in-line ports and slip socket valve design allows for quicker installations and also comes with the ability to vent, drain and flush.

Comes with Chemicals

Installer Benefits

• Small footprint: 98mm pipe cut-out.
• In-line valve design: For faster, simpler installation and retrofit.
• Easy flushing: Fully compatible for use with the ADEY MagnaCleanse®
• Complete magnetite removal: A fully removable filter canister also ensures the complete removal of captured magnetite without the likelihood of magnetite re-entering the system.
• 360° rotational valves: Giving you multiple installation options.
• Quick and easy servicing: Built-in vent and drain points enable easy servicing and maintenance.
• 2-year warranty.

Technical Specification

• MagnaClean ​Micro®
• Internal water operating temp: 3°C to 95°C
• Internal operating water pressure: up to 5 bar
• Maximum flow rate: 50 L/min
• Fluid capacity: 390ml
• Inlet: 22mm compression
• Outlet: 22mm compression
• Canister: Glass reinforced polymer
• Port Threads: 22mm
• Thread: Pressure thread
• Flow configuration: Directional inlet on bottom port
• Valve to canister seal: EPDM
• Magnet Length: 97mm
• Magnet Diameter: 19mm
• Total unit weight
• 8.5kg
• Air bleed valve
• Body material: ​​​Nickel plated brass
• Screw: Nickel plated brass
• Thread interface: M6
• Seals: EPDM
• Drain port
• Body material: ​​​Nickel plated brass
• Drain plug thread: M8
• Drain ​seals: EPDM
• Valves
• Body material: Nickel plated brass
• Seals material: Long life PTFE ball seals
• Valve inlet/outlet: 22mm compression
• O-ring material: EPDM
• Servicing Clearance
• Air vent (top): 30mm
• Drain plug (bottom): 30mm

Material

• Canister & threaded ring material: Glass reinforced polymer
• Finish/colour: Black

Size/dimensions (product installation)

• Height: 150mm
• Filter width: 80mm
• Depth from pipe centre: 138mm

Full installation instructions are supplied with each filter and are also available to download from adey.com

*Stock dependant
