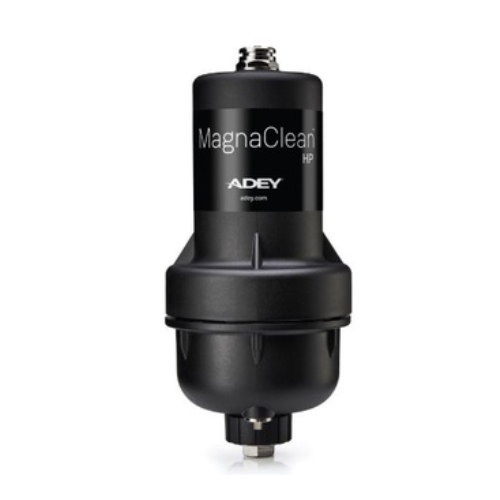

Adey MagnaClean HP Heat Pump Filter - 28mm - FL1-03-06223

MagnaClean HP® - Heat Pump & Low-Temperature System Protection

MagnaClean HP is a filter that has been designed specifically to protect heat pumps and low-temperature heating systems from both magnetic and non-magnetic debris, keeping them working as efficiently as possible, for as long as possible.

Low temperature heating systems, like those with heat pumps, are the perfect breeding ground for bacterial growth, which can clog them up, reducing efficiency and ultimately causing breakdown.

Thanks to MagnaClean HP's high-quality build, powerful magnet, stainless steel gauze and non-blocking design, you can rest assured that you are fitting a filter that will efficiently protect systems and will stand the test of time.

Installer Benefits

• Specially designed to protect heat pump and low temperature systems.
• Dedicated magnetic and non-magnetic capture allows both types of debris to be captured before it enters the system.
• Incorporates unique ADEY CycloFlow™ Technology which enhances water flow rate whilst simultaneously maximising first-pass capture rate.
• Non-blocking design for optimum flow, even when the filter is full, keeping the system working as efficiently as possible.
• Large canister ports: available for 28mm systems.
• Valves enable high flow rates and minimise pressure drops.
• First pass and continuous flow capture.
• Quick & easy to install & service.
• Chemicals can be easily dosed directly into the canister.
• 10-year warranty.

Homeowner Benefits

• Protects heat pumps from magnetic and non-magnetic debris.
• Save up to 7% on your gas usage with ADEY Best Practice®*.
• Immediate ongoing system protection.
• Extended system life of up to 7 years*.
• Reduces CO2 emissions by up to 250kg per year*.
• 10-year warranty when registered within 30 days of installation.

• *Based on independent research in the UK.

Technical Specification

• Canister and Lid
• M​aterial: ​Glass reinforced nylon
• Fluid capacity: 930ml
• Inlet diameter: 1" at valve
• Outlet diameter: 1" at valve
• Thread: Pressure thread
• Flow configuration: ​Directional inlet on bottom port
• Main lid seal: EPDM
• Valve to canister: EPDM
• Magnet
• Housing: ​Stainless steel
• Length: 150 mm
• Diameter: 19 mm
• Valves
• Body material: ​Nickel-plated brass
• Seal material: long-life PTFE ball seals
• O ring material: EPDM
• Valve inlet/outlet: ​28mm compression
• Specifications
• Internal water operating temperature: 3°C to 95°C
• Maximum working pressure: 6 bar
• Maximum flow rate: 80 L/min (5m3/h)
• Drain port
• Drain plug material: ​Nickel-plated brass
• Drain plug thread: M8
• Seals: EPDM
• Bleed Valve
• Body material: ​Nickel-plated brass
• Screw: Nickel-plated brass
• Thread interface: M6
• Seals: EPDM
• Servicing Clearance
• Air vent (top): 50 mm
• Drain Plug (bottom): 50 mm
• Size/dimensions (product installation)
• Height: 250.5mm
• Width at lid: 115mm

Full installation instructions are supplied with each filter and are also available to download from adey.com
