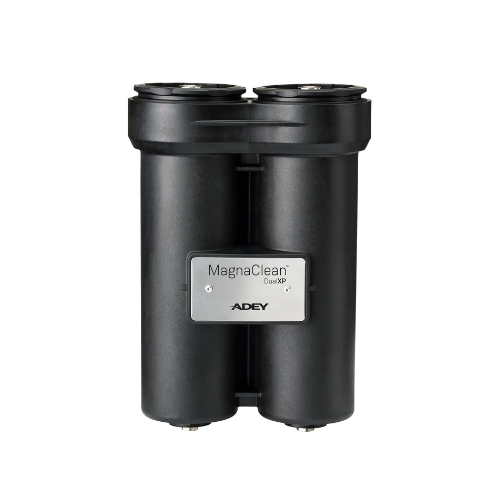

Adey MagnaClean DualXP Filter - FL1-03-02028

The MagnaClean DualXP has two powerful magnetic capture zones to remove greater volumes of iron oxide sludge and is the ideal solution for light commercial systems. The advanced technology bridges the gap between the domestic filter range and the MagnaClean Commercial products.

MagnaClean DualXP delivers exceptional protection against the damaging effects of black iron oxide sludge and non-magnetic debris. Each port on the DualXP has integral flow diverters to both the magnetic capture zones, ensuring uniform circulation around the length of the magnets.

The DualXP includes telescopic connectors with 1 ½" BSP threads. Reducing bushes are also supplied for 1 ¼" pipework. Connectors are adaptable to 42 mm or 35 mm pipework.

Technical Benefits

• Dual magnetic chambers with four non-magnetic capture zones
• Unique 1 ½ " BSP telescopic connectors
• Available with reducing bushes to connect to 1 ¼ " pipework
• Suitable for in-line and side stream installations
• 360 o rotational connectors provide versatile installation options suitable for both horizontal and vertical pipework
• Two low profile drain valves for easy servicing and dosing
• Ultra-thin sheath enhances magnetic particle capture
• Bi-directional flow; either port can be designated as port entry

Telescopic connectors make installation easier in horizontal or vertical orientations. These versatile connectors also make retro-fitting far more straightforward. For call-outs on existing installations the MagnaClean DualXP’s inherent retrofit characteristics can make fitting quicker saving time and money

The introduction of the dual magnetic chambers also enables a much smaller installation envelope making it easier for installers, without compromising filter performance. Another advantage of dual chambers is easier chemical dosing of the system via the filter.

Technical Specification

• Canister and lid
• Material: Glass reinforced nylon
• Volume: 2.43 litres (when telescopic connectors are retracted)
• Thread: Pressure thread
• Flow configuration: Bi-directional – any port can be inlet
• Main lid seal: EPDM
• Total unit weight
• 8.5kg
• Magnets x 2
• Housing: Stainless steel
• Length: 225 mm
• Diameter: 19 mm
• Bleed Valves x 2
• Body material: Nickel plated brass
• Screw: Nickel plated brass
• Thread interface: M6
• Seals: EPDM
• Drain ports x 2
• Drain plug material: Nickel plated brass
• Drain plug thread: M8
• Seals: EPDM
• Telescopic connectors x 2
• Inlet: 1½" Nominal bore
• Outlet: 1½" Nominal bore
• Body material: Nickel plated brass
• O ring material: EPDM

Full installation instructions are supplied with each filter and are also available to download from adey.com

*Stock dependant
