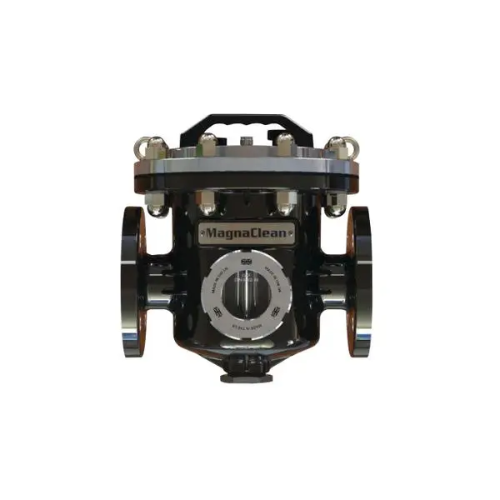

Adey MagnaClean - Commercial 3" - CP1-03-01124
Adey MagnaClean - Commercial 3" - CP1-03-01124
- Lead Time: 1-5 Working Days*
Couldn't load pickup availability
MagnaClean Commercial is a powerful range of magnetic filters designed to protect and maintain demanding light commercial heating systems through to heavy industrial applications. This technology removes black iron oxide sludge and debris which has proven to be an effective way to maintain and protect commercial heating systems.
MagnaClean Commercial is manufactured to EN 13445:2009 in five sizes to meet the demands of a broad cross section of applications.
Engineered to a high specification, the single cast mouldings are readily available in 2", 3", 4", 6" and 8" pipe dimensions with PN16 flanges. The quality of the filter cast bodies is verified by X-ray analysis. The product also comes supplied with EPDM full-flange gaskets for robust sealing at high temperatures.
Technical Benefits
- Exceptional magnetic capture of black iron oxide; up to 80% better when tested against traditional methods
- Helps restore heating system efficiency and performance; up to 30% more efficient
- Ongoing maintenance costs are reduced
- High quality neodymium magnets which can be individually removed to make servicing easier and safer
- Magnets remain attached to the filter during servicing, reducing risk of water ingress
- Construction conforms to Pressure Equipment Directive 97/23/EC
- Easy inspection of debris capture via sight glass
- Collects large and micro particles
- Compatible with all heating systems
- Simple installation and servicing
- Manufactured in the UK
Technical Specification - Commercial 3”
- Casing
- Material: 304L stainless steel
- Drain port: 1¼" BSPP hole, 1¼" BSPT plug
- Maximum working pressure: 10 bar
- Maximum working temperature: 100°C
- Total unit weight
- 3": 40.1kg
- Magnets
- Material: High power, NdFeB
- Pocket sleeves: 304L Stainless steel
- Lid seal: EPDM
- Flow flange
- Size: PN16, supplied with EPDM gasket
- Flange thickness: 15 mm
- Bolt size: M16
- Bolt quantity: 8
- Bolt hole PCD: 160
- Sight glass
- Weld material: DIN1.4404 stainless steel
- Collar nut: DIN1.4301/DIN1.4307 stainless steel
- Glass: Toughened soda lime to BS3463
- Product side seal: EPDM
- Outer seal: Non-asbestos fibre (KILINGERsil C-4400)
Full installation instructions are supplied with each filter and are also available to download from adey.com
*Stock dependant
