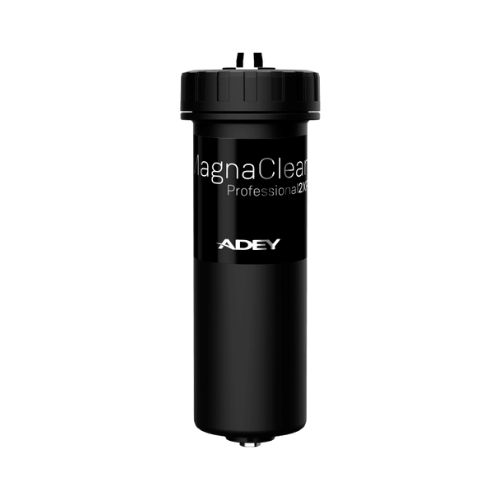

Adey MagnaClean Professional2XP - 28mm - FL1-03-01357
Adey MagnaClean Professional2XP - 28mm - FL1-03-01357
- Lead Time: 1-5 Working Days*
Couldn't load pickup availability
MagnaClean Professional2XP has a larger filter capacity to remove greater volumes of magnetite and is the perfect solution for larger central heating systems.
MagnaClean Professional2XP delivers protection against the damaging effects of black iron oxide sludge and non-magnetic debris. Unlike other filters, it features; specially designed 28mm valves, ultra-thin sheath, dual capture chambers, larger canister and sludge capacity, enabling it to capture and remove greater volumes of debris produced by larger systems with more radiators.
Homeowner Benefits
- 6% annual saving on heating bills*
- Immediate ongoing system protection
- Extended system life
- Reduced carbon emissions
Installer Benefits
- Designed for larger heating systems
- Greater filter capacity
- Unique, full-flow 28mm valves
- 360° rotational valves providing multiple installation options
- Bi-directional flow so either port can be an inlet for increased flexibility
- Ultra-thin sheath to enhance magnetic capture performance
- Low profile drain valve designed for easier servicing and dosing
- Twin reverse flow that maximises debris capture
- Improved sheath design for dual nonmagnetic capture
- Rapid fit connectors for faster servicing
Technical Specification
- Canister and lid
- Material: Glass reinforced nylon
- Fluid capacity: 840 ml
- Inlet diameter: 28 mm at valve
- Outlet diameter: 28 mm at valve
- Thread: Pressure thread
- Flow configuration: Bi-directional
- Main lid seal: EPDM
- Valve to canister: EPDM
- Magnet
- Housing: Stainless steel
- Length: 225 mm
- Diameter: 19 mm
- Bleed valve
- Body material: Nickel plated brass
- Screw: Nickel plated brass
- Thread interface: M6
- Seals: EPDM
- Drain port
- Drain plug material: Nickel plated brass
- Drain plug thread: M8
- Seals: EPDM
- Triple seal valves
- Body material: Nickel plated brass
- Seals material: Long life PTFE ball seals
- O ring material: EPDM 70 seals x3
- Valve inlet/outlet: 28 mm
- Servicing Clearance
- Air vent (top): 50 mm
- Drain Plug (bottom): 50 mm
Full installation instructions are supplied with each filter and are also available to download from adey.com
*Stock dependant
