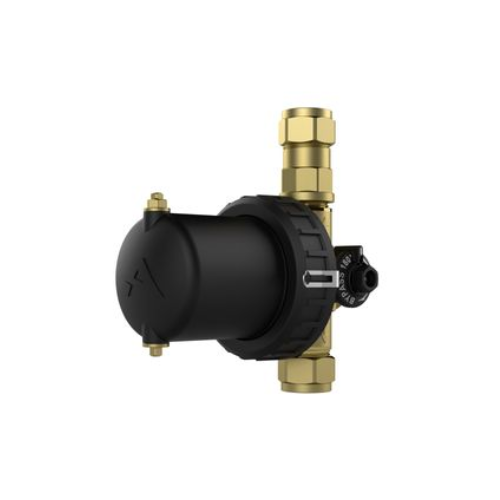

Adey MagnaClean Atom - 22mm - FL1-03-03779

The new MagnaClean Atom™ the super compact, space saving filter. Developed with installers for even the tightest of installations.

MagnaClean Atom protects the central heating system against the damaging effects of black iron oxide sludge. The super compact design provides an opportunity to fit a filter into previously inaccessible spaces .

Homeowner Benefits

• 6% annual saving on heating bills*
• Immediate ongoing system protection
• Extended system life
• Reduced carbon emissions

Installer Benefits

• Only 115mm pipe cutout length needed to install so can fit into even the tightest of spaces
• Fits vertical and horizontal pipework for additional flexibility
• Filter can be switched to bypass so no need to turn off the heating system when servicing
• Supplied fully assembled and ready for installation saving time on-site
• Slip socket design to allow easy installation
• Quick and easy chemical dosing using ADEY Rapide®

Technical Specification

• Canister and lid
• Material: Glass reinforced nylon
• Fluid capacity: 230 ml
• Inlet diameter: 22 mm compression
• Outlet diameter: 22 mm compression
• Thread: Pressure thread
• Flow configuration: Uni-directional
• Main lid seal: EPDM
• Valve to canister: EPDM
• Magnet
• Length: 82.5 mm
• Diameter: 20 mm
• Bleed valve and drain port
• Material: Brass
• Thread interface: M8 (non-standard)
• Seals: EPDM
• Bleed Nipple
• Material: Brass
• Thread interface: M6
• Servicing Clearance
• Air vent (top): 20 mm
• Drain Plug (bottom): 20 mm
• Storage
• Internal water operating temperature: 3°C to 95°C
• Internal operating water pressure: up to 4.5 bar
• Maximum flow rate: 50 L/min

Full installation instructions are supplied with each filter and are also available to download from adey.com

*Stock dependant
