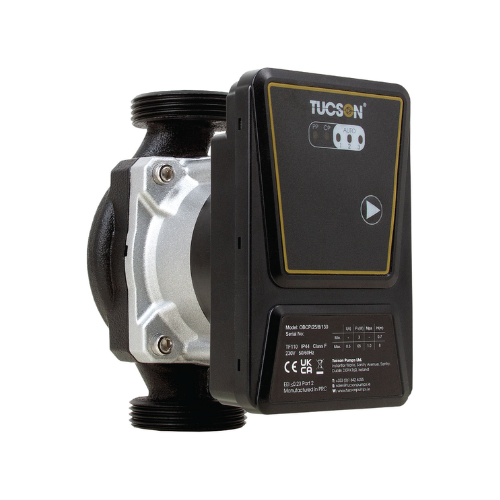

Tucson Oil Boiler Circulating Pump - 8m Head - 771947

Tucson Oil Boiler Circulating Pump - 8m Head - 771947

Built to deliver reliable performance in domestic central heating systems, this compact circulating pump efficiently moves heated water from the boiler through radiators, towel rails, and back again to maintain consistent warmth

Its space-saving design makes it ideal for installations in tight or restricted areas. At the same time, the durable cast iron construction ensures long-lasting reliability—perfect for both new systems and retrofit projects.

Easy to install and operate

Suitable for domestic applications

Designed as a compact unit for tight spaces

ErP-compliant with an impressive energy efficiency rating of <0.23 for reduced power consumption

Crafted with a durable cast iron body, ideal for long-term resistance against corrosion

Technical Data:

• Product Code: 771947
• Description: Tucson 8 Metre OB Circulating Pump with PWM Control
• Energy Efficiency Index: EEI <0.23 Part 2
• Voltage/Frequency: 230V / 50Hz
• Insulation Class: F
• Operating Environment Temperature: 0° -40°C
• Max Working Pressure: 10 Bar
• Min Working Pressure: 0.05 Bar @75°C
• Ingress Protection Rating: IP44
• Threaded Connection: 1 1/2" BSP/G 1 1/2
• Material Specification:

  Manifold - Electrophoresis Cast Iron
  Impeller - PES
  Motor Head - ZL104
  Motor Can - SUS304
  Control Box - ABS+PC

• Manufacturing Standards:
  EMC Directive 2014/30/EU: EN55014-1+2, EN61000-3-2+ 3-3
  LVD Directive 2014/35/EU: EN60335-2-51:2003/A2:2012, EN60335-1:2021/A15:2021, EN62233:20008
  ErP No641/2009: (EU)622/2012 : EN16297-1+2+2

*Stock dependant
