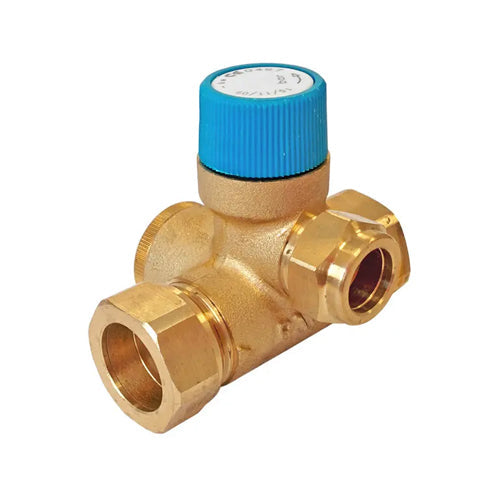

RWC Core Unit Pressure Relief Expansion Manifold Valve Vessel Port - 6 Bar - 3/4" F - CORE216001
RWC Core Unit Pressure Relief Expansion Manifold Valve Vessel Port - 6 Bar - 3/4" F - CORE216001
- Lead Time: In stock, ready for next day delivery*
Regular price
£47.31
Regular price
Sale price
£47.31
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The core manifold is a unique valve that incorporates several different components to make one central safety device. It is designed especially for unvented systems to go on the incoming mains supply pipe to a hot water cylinder. The components which make up the core manifold are; a pressure relief valve cartridge (6bar) to prevent over pressurisation of the system, a single check valve that provides backflow prevention up to category 2, and a 3/4" dedicated connection for an expansion vessel.
Features & Benefits
- 6 Bar Core Unit Pressure Relief Manifold
- 3/4" FBSP Expansion Vessel Connection
- Designed especially for unvented hot water systems
- Pressure relief valve (6 bar)
- Single check valve
- Expansion vessel connection (3/4" FBSP)
- Prevents over pressurisation and backflow
- WRAS Approved
Specification
- Maximum Temperature: 25°C
- Pressure Relief Cartridge: Pre-set and locked to 6bar
- Expansion Vessel Connection: 3/4" FBSP
- WRAS no: 0912046
- Body: DZR brass
- Diaphragm: EPDM
- Seal: EPDM
- Spring: Stainless Steel
- Cap: High-grade glass fibre reinforced plastic
