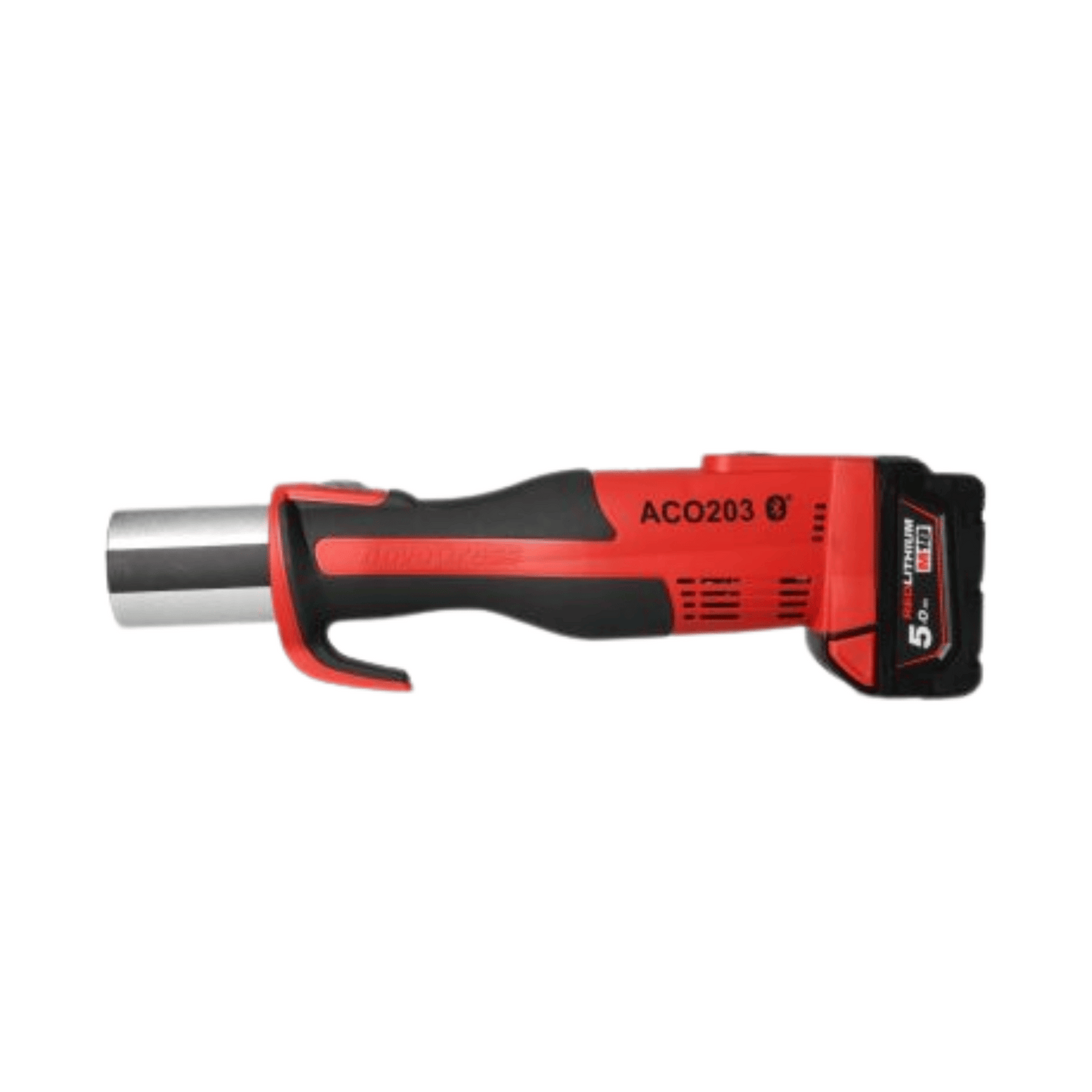

Novopress ACO203 - Tool Only (No Case) - 4715480-50

TOOL ONLY

Advantages of the ACO203 pressing device

• Lower weight: Makes handling easier and enables fatigue-free working over longer periods of time.
• Pressing point lighting: Makes it easier to work in difficult lighting conditions.
• High number of crimping cycles: No limit to the number of crimping cycles within the 2-year maintenance interval.
• Increased crimping speed: Thanks to the brushless motor technology (ACO203).
• More crimps: 40% more crimps can be carried out per battery charge* (ACO203)
• NovoCheck app:: Enables evaluation of the crimping tool performance and retrieval of tool-related data.

Pressing units ACO203

Fit for the future with the new generation

The world of pressing technology has developed rapidly in recent years and Novopress is at the forefront of these innovations. As a pioneer in the field of pressing technology, we develop advanced solutions that revolutionise your day-to-day work. One example of this is the ACO203 crimping machine. This pressing device available sets new standards in terms of performance, handling and efficiency.

What characterises the ACO203 pressing machine

The Novopress ACO203 pressing machines are among the most modern pressing machines up to 110 mm on the market. The ACO203 is a battery-powered pressing machine that impresses with its brushless motor technology.

The lower weight compared to the previous model and the optimised design make the pressing device even easier to handle and make it easier for installers to work overhead. The pressing machine also scores points in difficult lighting conditions thanks to the pressing point lighting.

The innovative brushless motor technology in the Novopress ACO203 enables up to 40 % more joints per battery charge compared to its predecessor. This motor technology significantly reduces the maintenance requirements for the entire pressing tool. Thanks to the wireless technology implemented in the Novopress ACO203, device-related data can be called up via the NovoCheck app.

Possible applications for the ACO203 pressing units

The Novopress ACO203 pressing devices are perfect for a wide range of applications in installation technology. They can be used for pressing metal pipe systems up to 108 mm and plastic pipe systems up to 110 mm. This makes them ideal for plumbing, heating and air conditioning installations as well as industrial applications.

Compatible pressing tools

The versatility of the ACO203 pressing machine is enhanced by its compatibility with various pressing tools. These include:

Pressing jaws: For the safe and reliable crimping of various pipe systems.

Pressing slings: Ideal for hard-to-reach areas and large pipe diameters.

Technical Details

• Product: ACO203
• Nominal width metal: up to 54 mm (depending on system up to 108 mm)
• Nominal width: plastic up to 110 mm
• Piston force: 32 kN
• Piston stroke: 40 mm
• Weight: 2.3 kg
• Length: 387 mm
• Width: 75 mm
• Height: 111 mm
• Power consumption: 450 W
• Battery: 18V Li-Ion M18™ Milwaukee® battery system (1)
• Battery capacity (2): up to 250 pressings
• Charging time (3): 45 - 75 min.

(1) all Milwaukee® capacities available on the market can be used

(2) depending on nominal size and material

(3) depending on battery capacity
