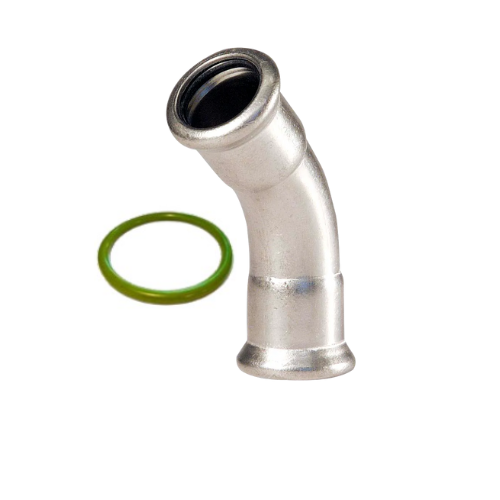

M-Press Fittings - Stainless Steel 304 FKM for Solar, High Temp, Compressed Air & Industrial Heating - M-Profile - Press Fit - Obtuse Bend - 89mm
M-Press Fittings - Stainless Steel 304 FKM for Solar, High Temp, Compressed Air & Industrial Heating - M-Profile - Press Fit - Obtuse Bend - 89mm
- Lead Time: 1-5 Working Days*
Couldn't load pickup availability
M-Press Fittings - Stainless Steel 304 FKM for Solar, High Temp, Compressed Air & Industrial Heating - M-Profile - Press Fit - Obtuse Bend
Seal Definition: Fluoro-Elastomer (Viton)
Sizes: 15mm - 168mm (140mm - 168mm MXL Range)
Pressure: 16 bar
Min Temperature: -30°C
Max Temperature: 205°C
Warranty (Years): 50 Years (against manufacturers defects)
Specification: N/A
Formed: 1.4404 according to EN10088/304
Threaded: 1.4408 according to EN10283/304
Pipe: 1.4301 according to EN10088-3
Applications:
Commercial Solar Thermal Heating
Industrial Heating Systems
Commercial Steam Condensate
Industrial Compressed Air
Acidic Transportation
Hydraulic Applications
Oil & Fuel
Application Services:
High Temperature Heating / HWS
Diesel, Kerosene, Petroleum, Paraffin
Low Pressure Low Temperature Steam Condensate (7 bar max/120°C)
Industrial Compressed Air (>25mg/M3 Compressor Oils)
Acid Solutions
Hydraulic Oil
Heavy Oil & Fuel Transportation
*Stock dependant
