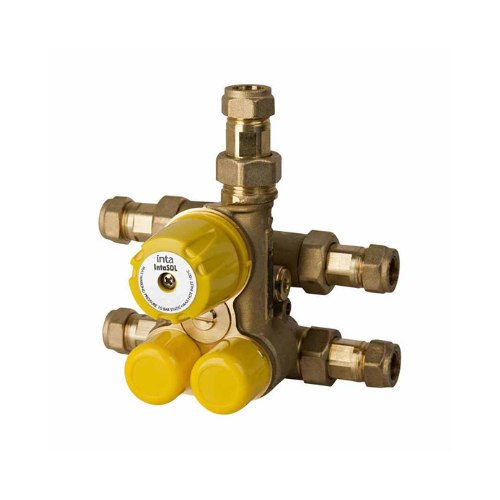

Inta Solar TMV Intasol Combination Diverter Valve - 555CSD1

The intasol combi diverter valve enables solar heated unvented hot water cylinders to be linked with a combi boiler. In the event the hot water temperature in the cylinder dips below a usable temperature, the valve diverts this water to the combi boiler treating it as a pre-heat. The valve then blends hot water produced by the combi boiler or the cylinder with cold water from the mains to deliver water at a safe, usable temperature for the end user.

• Links a solar heated unvented cylinder to a combi boiler
• WRAS approved
• Diverts to hot water from the combi boiler in the event of low cylinder temperatures
• Maximises the use of solar heated water in the cylinder
• Provides safe blended hot water to the end user
• Maximum static pressure 10 bar
• Maximum dynamic pressure 5 bar
• Temperature adjustment range 35 – 55°C Temperature stability ±2°C
• Maximum inlet temperature 110°C
• Minimum flow rate for stable operation 6 l/min

*Stock dependant
