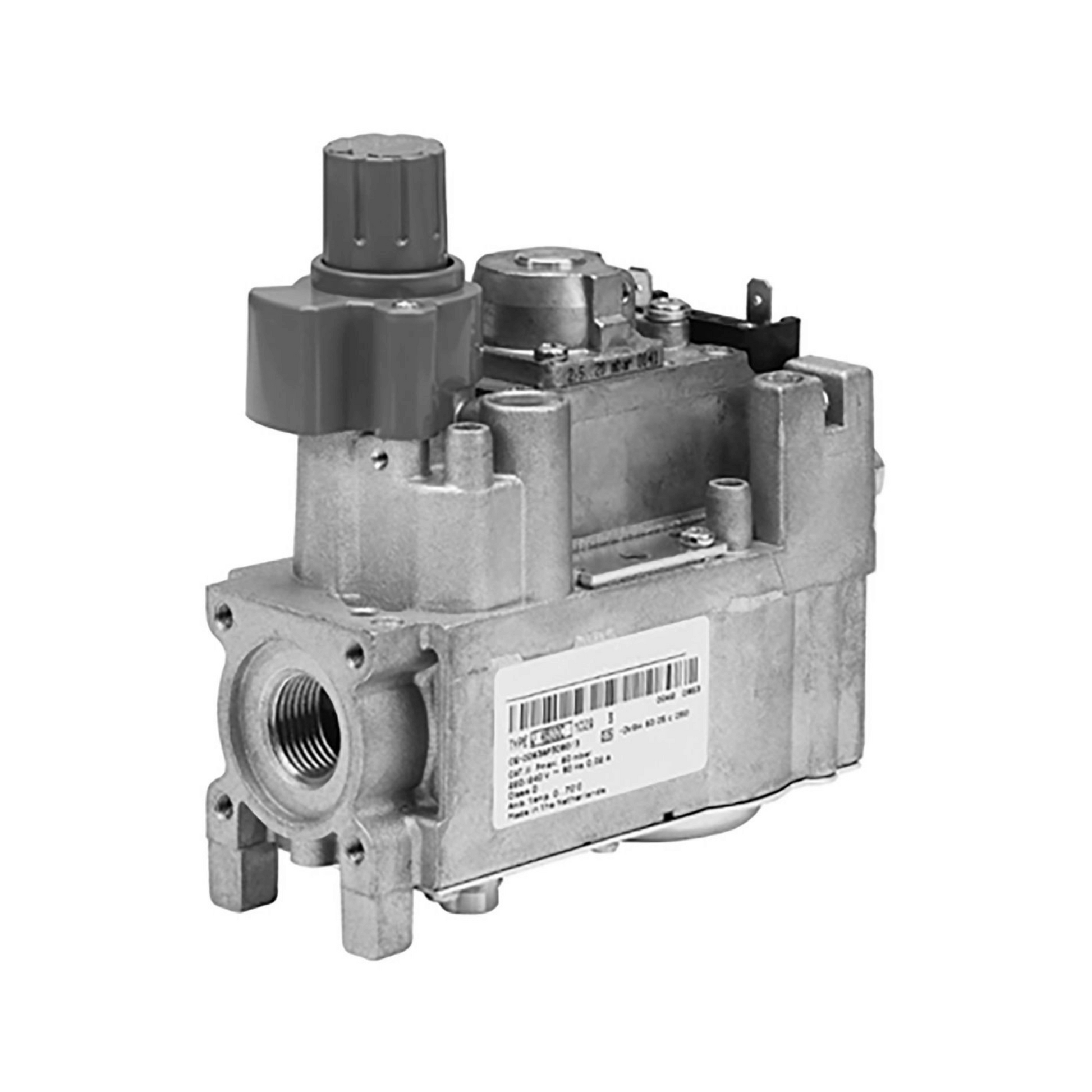

Honeywell Resideo V4600 Combo Gas Control Valve - 1/2" x 1/2" - V4600C 1086U
Honeywell Resideo V4600 Combo Gas Control Valve - 1/2" x 1/2" - V4600C 1086U
- Lead Time: 1-5 Working Days*
Regular price
£105.88
Regular price
Sale price
£105.88
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Gas control valve for standing pilot applications without gas pressure regulation.
- Safety valve manual operated
- Only for pilot burner with thermocouple
- 220/240V or 24V, 50 Hz operator
- No gas pressure regulation (blank plate)
Specifications
- Application: Multi Function Gas Control
- Ignition Type: Standing Pilot
- Regulator: Standard
- Operating Voltage: 220/240 V
- Inlet Connection Size: 1/2 in
- Inlet Connection Type: BSP.PI
- Outlet Connection Size: 1/2 in
- Outlet Connection Type: BSP PL
- Factory Pressure Setting: 9 mbar ± 1 at inlet pressure of 27 mbar
- Regulation Range (Max): 20 mbar
- Regulation Range (Min): 2.5 mbar
- Soft Lite Pressure: 5 mbar, -3,5/+0 after 1,5 s
- Operating Pressure (Max): 30 mbar
- For Use With: V5306E standard regulator
- Product Features: Safety valve manual operated, Only for pilot burner with thermocouple, 220/240V, 50 Hz operator, V5306E standard regulator
- Ambient Operating Temperature (Max): 70 °C
- Ambient Operating Temperature (Min): 0 °C
- Approvals and Standards: CE Compliant
- Color: Grey
- Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob
- Operating Frequency: 50 Hz
- Pilot Gas Outlet: Compression Fitting 6 mm, Compression Fitting 1/4 in
