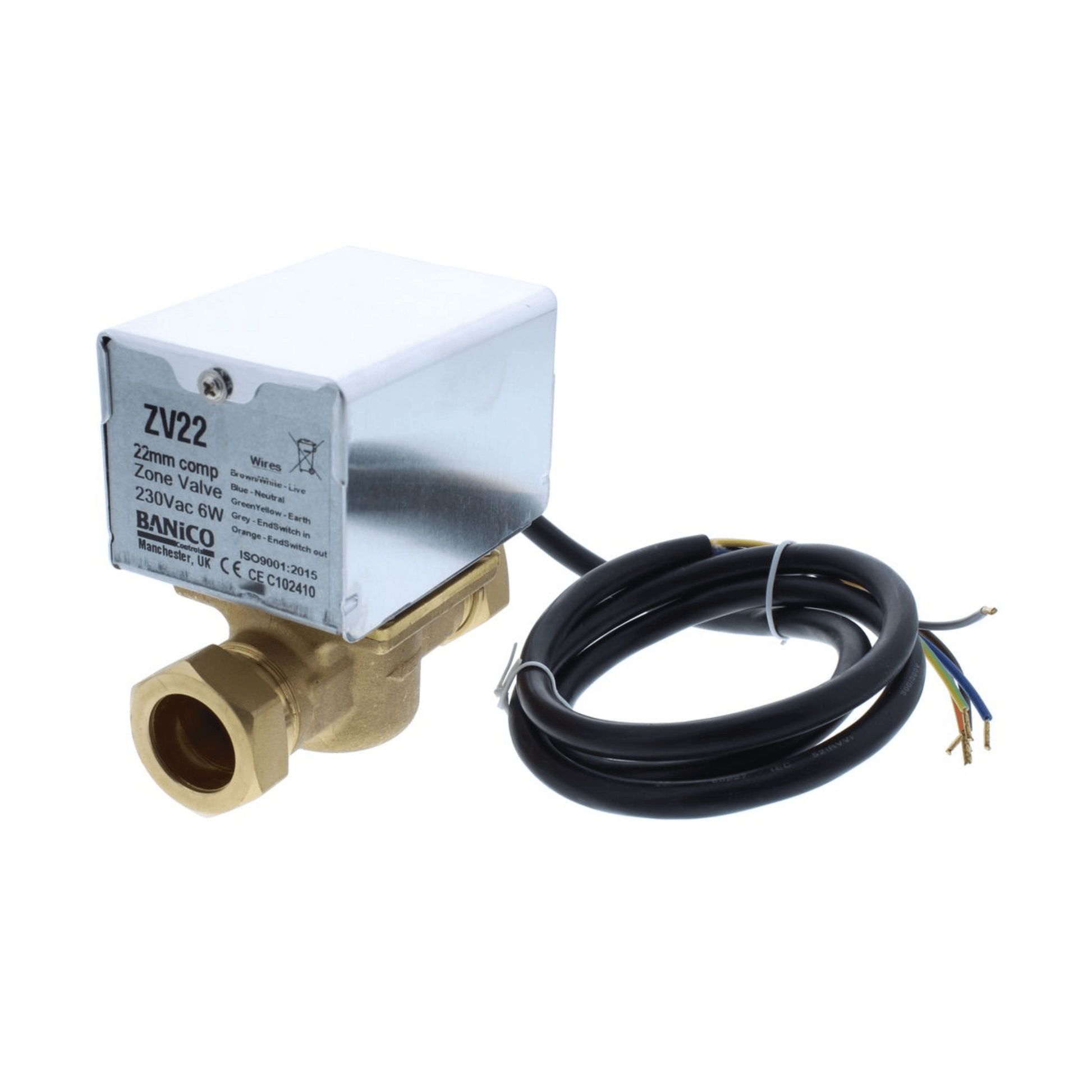

Banico 2 Port Motorised Zone Valve - 22mm - ZV22
Banico 2 Port Motorised Zone Valve - 22mm - ZV22
- Lead Time: In stock, ready for despatch*
Couldn't load pickup availability
2-PORT ZONE VALVE WITH METAL COVER
230 Vac (24 Vac and 110 Vac on request), 6 W power consumption. 5 Core, 1 metre cable length with ‘industry standard’ colour coded wire. Auxillary microswitch 3A - 250 Vac. Max amp temp 60°C, Media temp 5 to 88°C K.V. measured in m3/h for 1 bar pressure drop. Manual lever for filling/draining. Port A is normally closed when there is no power. Detachable actuator.
APPLICATION
The ZV range 2-port spring return valve has been designed in general to be used in commercial, industrial applications and on central heating systems which when correctly wired with an appropriate room thermostat, cylinder thermostat and programmer will control the water flow from the boiler to central heating.
