Description

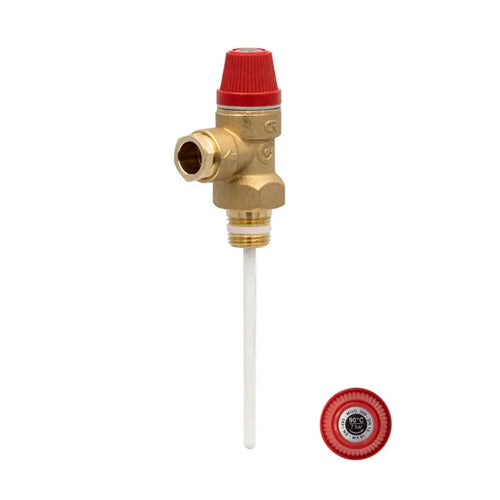

The Altecnic 309 temperature-pressure relief valves are used to control and limit the temperature and pressure of hot water contained in a domestic storage cylinder, preventing the water from reaching 100°C. When the set conditions are reached, the valve discharges a sufficient amount of water to allow the temperature or pressure to return within the system's operating limits. The valves have been designed for use on unvented hot water systems.
Important Notice
This part is a suitable replacement for the 7 Bar 1/2" x 15mm CPT15 or TPR15 Pressure & Temperature Relief Valve
Features & Benefits
- Series 309 Pressure & Temperature Relief Valve
- Pressure & temperature relief valves for unvented hot water systems
- 1/2" sized valve
- WRAS Approved
Specification
- Series: 309
- Medium: Water
- Max pressure: 10 Bar
- Discharge rating: 10 kW
- Factory set temperature: 90°C
- Factory set pressure: 7 Bar
-
PED Category: IV
- Dimensions: W - 55.00mm D - 31.00mm H - 187.00mm
- Certifications: WRAS Approved
