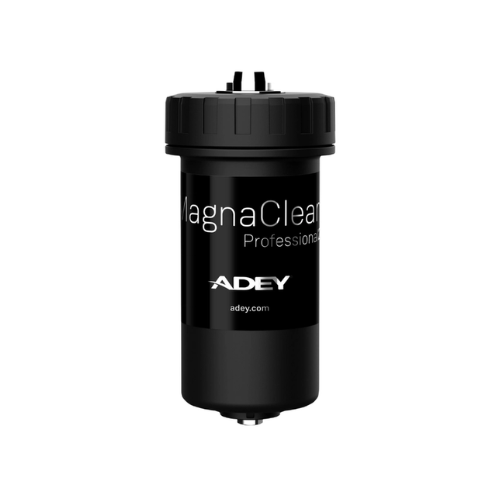

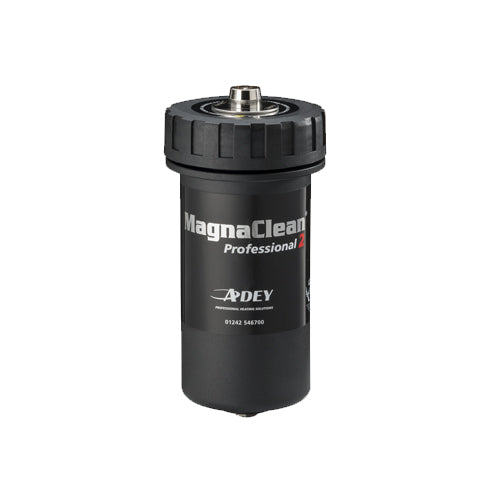

Adey MagnaClean Professional2 Filter - 22mm - CP1-03-00022-01
Adey MagnaClean Professional2 Filter - 22mm - CP1-03-00022-01
- Lead Time: 1-5 Working Days*
Couldn't load pickup availability
It’s no wonder the MagnaClean Professional2 is the market leading magnetic filter due to its power and capacity to specifically target the removal of magnetite within central heating systems.
The unique design of the MagnaClean Professional2 maximises first pass capture, actively trapping any circulating debris therefore providing year-round protection for the whole system. MagnaClean Professional2 is the first-choice filter for thousands of UK installers, delivering exceptional domestic central heating system protection.
Homeowner Benefits
- 6% annual saving on heating bills*
- Immediate ongoing system protection
- Extended system life
- Reduced carbon emissions
Installer Benefits
- In-line installation can be completed in just two minutes
- 360° rotational valves providing multiple installation options
- Bi-directional flow so either port can be an inlet for increased flexibility
- Ultra-thin sheath to enhance magnetic capture performance
- Low profile drain valve designed for easier servicing and dosing
- Twin reverse flow that maximises debris capture
- Improved sheath design for dual nonmagnetic capture
- Rapid fit connectors for faster servicing
Technical Specification
- Canister and lid
- Material: Glass reinforced nylon
- Fluid capacity: 550 ml
- Inlet diameter: 22 mm at valve
- Outlet diameter: 22 mm at valve
- Thread: Pressure thread
- Flow configuration: Bi-directional
- Main lid seal: EPDM
- Valve to canister: EPDM
- Magnet
- Housing: Stainless steel
- Length: 150 mm
- Diameter: 19 mm
- Bleed valve
- Body material: Nickel plated brass
- Screw: Nickel plated brass
- Thread interface: M6
- Seals: EPDM
- Drain port
- Drain plug material: Nickel plated brass
- Drain plug thread: M8
- Seals: EPDM
- Triple seal valves
- Body material: Nickel plated brass
- Seals material: Long life PTFE ball seals
- O ring material: EPDM 70 seals x3
- Valve inlet/outlet: 22 mm
- Servicing Clearance
- Air vent (top): 50 mm
- Drain Plug (bottom): 50 mm
Full installation instructions are supplied with each filter and are also available to download from adey.com
*Stock dependant
